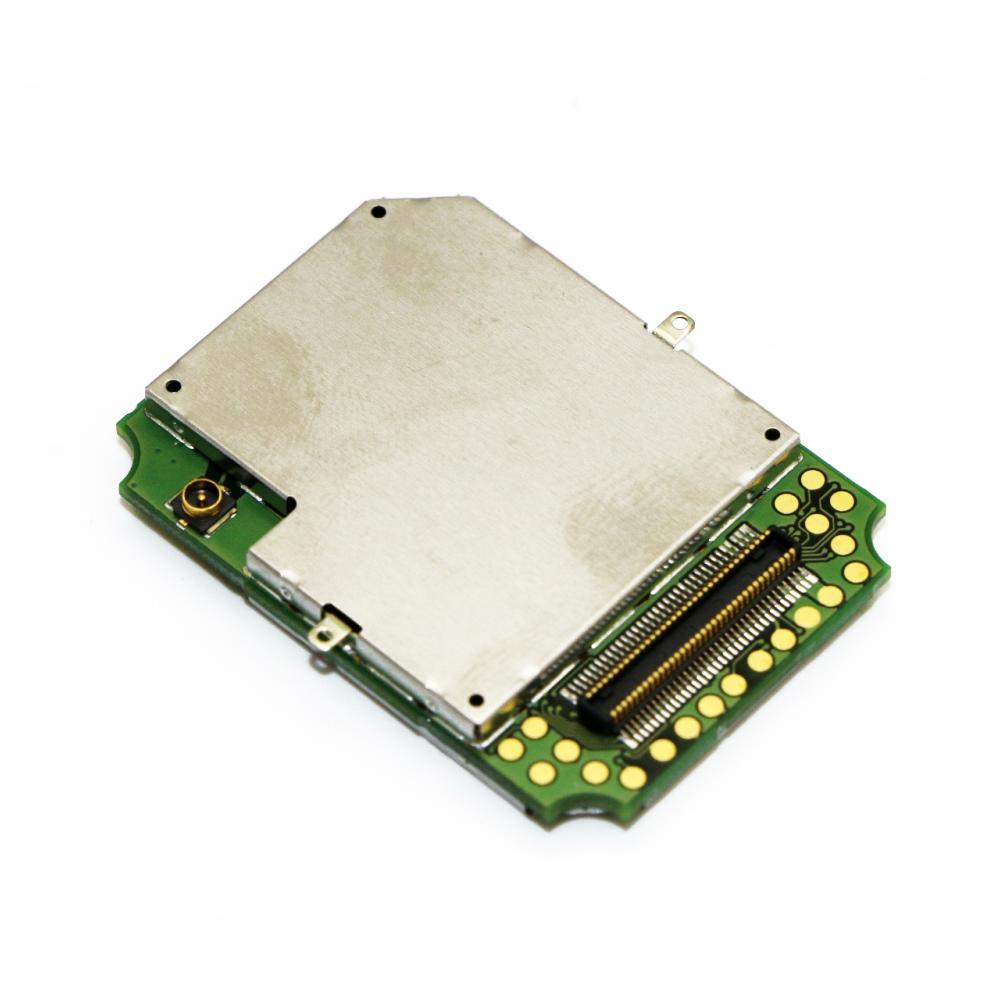

| Model: | SIM5215 |
|---|---|
| Brand: | SIMCOM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | simcom sim5215 , low cost 3g Module , sim5215 |
| Price: |
-
|
| Min. Order: | 5 pc |
| Live Chat: |  | Last Online:18 Jan, 2024 |
General features
- SIM5215A: Dual-Band UMTS/HSDPA 850/1900MHz
GSM/GPRS 850/900/1900MHz
SIM5215E: Dual-Band UMTS/HSDPA 900/2100MHz
GSM/GPRS 850/900/1800MHz
- GPRS multi-slot class 12
- EDGE multi-slot Class 12
- WCDMA 3GPP release 99
- Output power
- UMTS 2100/900: 0.25W
- GSM850/GSM900: 2W
- DCS1800: 1W
- Control Via AT Commands
- Supply voltage range: 3.3V~ 4.2V
- Operation temperature range: -30 ℃ to +80℃
- Dimension: 36×26×4.7(mm)
- Weight: about :TBD
Support embedded Script Language
- LUA Script Language
Specifications for Data transfer
- WCDMA
- Max.384Kbps(DL), Max.384Kbps(UL)
- EDGE
- Max. 236.8Kbps(DL),Max.118Kbps(UL)
- GPRS
- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
- CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
Specifications for SMS
- Point to point MO and MT
- Text and PDU mode
Specifications for CSD
- Support in GSM and WCDMA
Specifications for Network Identity and Time zone (NITZ)
- Support in GSM and WCDMA
Specifications for video call
- DTMF on H245
- Support standard WCDMA 64kbps(CS) Video call
Other features
- USB Driver for Microsoft Windows 2000/XP/Vista
- USB Driver for Linux 2.6.16
- Firmware update via USB
- MMS
- TCP/IP
- FTP/HTTP/SMTP/POP3
- FOTA
- USB Audio
Interfaces
- USB2.0
- UART
- USIM card
- ADC
- Digital Camera
- GPIO
- I2C
- Micro-SD card
| Payment Terms: | TT/WU/LC/PAYPAL |
|---|---|
