| Model: | PCLRP Series |
|---|---|
| Brand: | KT-FLEX |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Fastener & Fitting |
| Label: | metal clamp , conduit clamp , pipe clamp |
| Price: |
US $0.2
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:18 Apr, 2016 |

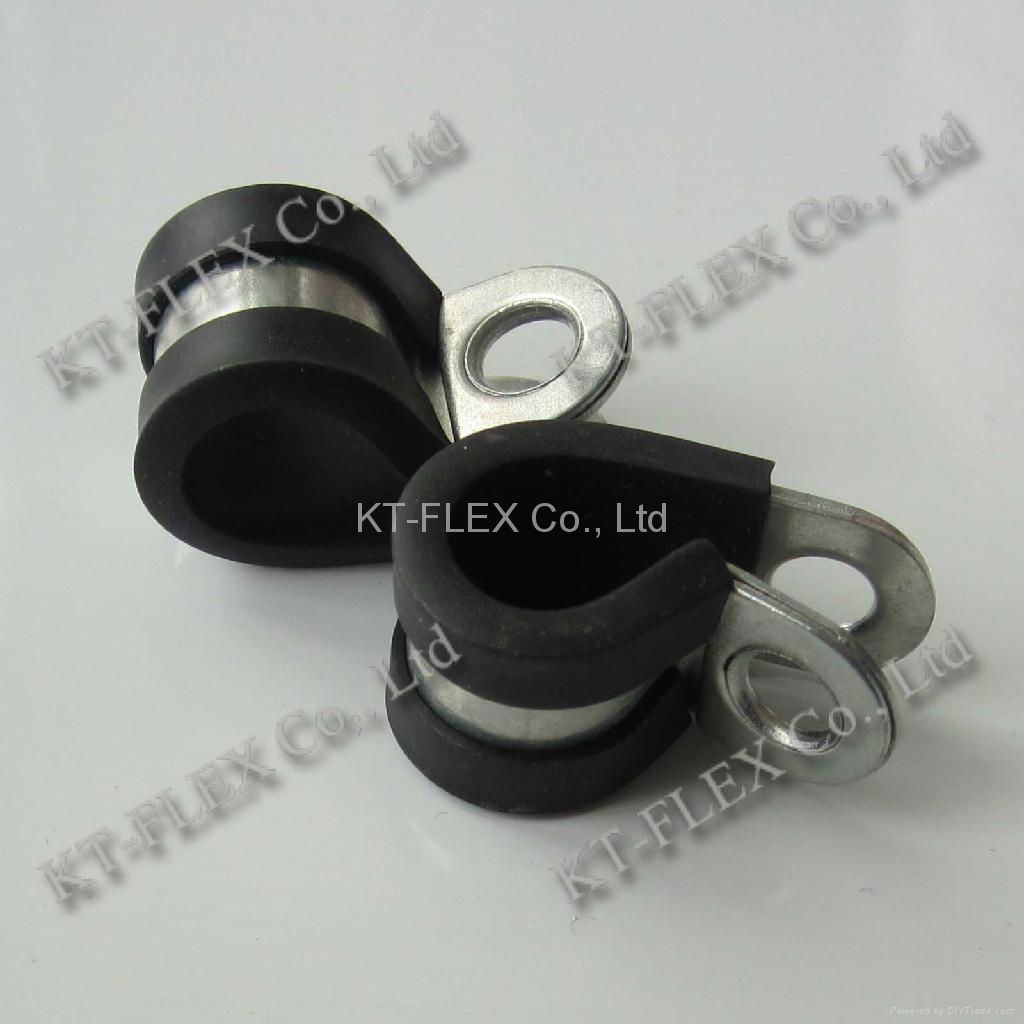

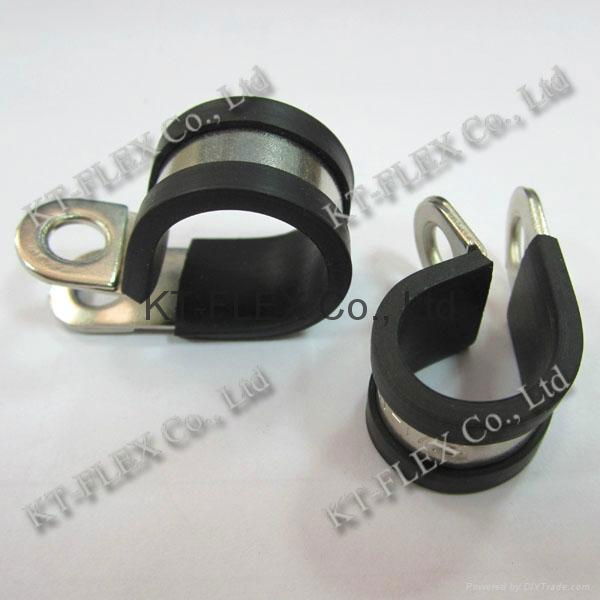

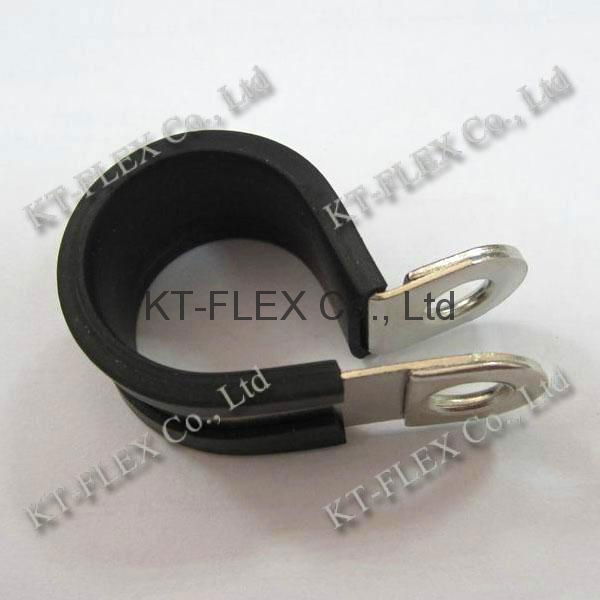

PCLRP series
Material: steel plated zinc/stainless steel
Working temperature: -40℃～105℃
Application: Fix the tubing, the elastic material has excellent UV-resistant property
Specification chart:
|
Part No. |
I.D. |
Screw Aperture |
Width |
Thickness |
|
(mm) |
(mm) |
(mm) |
(mm) |
|
|
PCLRP006 |
9 |
6.6 |
15 |
1.0 |
|
PCLRP007 |
12 |
6.6 |
15 |
1.0 |
|
PCLRP008 |
14 |
6.6 |
15 |
1.0 |
|
PCLRP010 |
16 |
6.6 |
15 |
1.5 |
|
PCLRP011 |
20 |
6.6 |
15 |
1.5 |
|
PCLRP012 |
25 |
6.6 |
15 |
1.5 |
|
PCLRP013 |
30 |
6.6 |
15 |
2.0 |
|
PCLRP014 |
38 |
6.6 |
15 |
2.0 |
|
PCLRP015 |
45 |
6.6 |
15 |
2.0 |
|
PCLRP016 |
58 |
6.6 |
15 |
2.5 |
|
PCLRP017 |
70 |
6.6 |
15 |
2.5 |
|
PCLRP018 |
78 |
6.6 |
15 |
2.5 |
|
PCLRP019 |
110 |
6.6 |
15 |
3.0 |
Products & Service
* Squarelocked & Interlocked galvanized flexible conduit
* Squarelocked & Interlocked stainless steel conduit
* PVC coated steel conduit
* Liquid tight flexible conduit
* Heavy duty waterproof conduit
* Stainless steel braided conduit & cable sleeve
* Explosion proof flexible conduit
* Non-metallic liquid tight conduit (polyamide, polythene, polypropylene)
* Split nylon corrugated conduit
* Liquid tight flexible conduit connector
* 45 degree & 90 degree conduit box connector
* EMT conduit union & Conduit to pipe coupling
* Brass & nylon cable gland
* Conduit pipe clamp
* Conduit pipe reducer & extension
* EMT conduit bushing & locknut
* Electrical conduit ferrules
* OEM is welcome
About us:
KT-FLEX Co., Ltd is registered in Tianjin Binhai New Area, is a high technology enterprise which is specialized in manufacturing high quality flexible conduit, connector and complementary fittings. Our company owns a high-level R&D, production,sales and service working team. In order to ensure quality, the company constantly increases the investment on manufacturing equipment, now it has the international advanced production equipment and testing equipment, improved the quality testing and control systems, got the ISO 9001:2008, Explosion proof certificates. Bearing the belief of "quality is life, service is future", adhering to "persist producing independent intellectual property right products as core", have created "KT-FLEX" brand.
Kt-flex's conduit and connectors have past the industry testing and part of them have obtained the national patents. To meet different needs, Kt-Flex Co., Ltd provides professional technical advice and solution for customer's requirement. Kt-Flex’s products with high flexibility, good tensile strength, anti-fire, water, corrosion, anti-UV, have been widely used in industrial facilities, telecommunication equipment, electric power plant, wire harnesses, instrumentation and automobiles etc. It's the first choice of the high-end enterprise.
| Price Terms: | FOB Tianjin |
|---|---|
| Payment Terms: | TT/LC/WESTERN UNION |
| Packing: | carton |
| Lead Time: | 15 days |
