Coal Mine Track Rock Drill

Model:	CMJ2-18
Brand:	Eastsun
Origin:	Made In China
Category:	Industrial Supplies / Mining Machine
Label:	drilling rig , drilling jumbo , jumbo
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Tangshan Eastsun Institute of Hydraulic Mechatronics

Free MemberHe Bei - China

Live Chat:

Last Online:24 May, 2019

Product Description

CMJ2-18 is mainly used to drill blast holes for tunneling constructions in mining, metallurgy, water and electricity, railway, highway engineering, etc. This series use all hydraulic drive, two booms work together, with high efficiency and speed which can be 0.8-2 m/min. The advanced hydraulically controlled drilling system, which is safe and simple to operate, incorporates the auto stop and anti-jamming function, auto-stop at end-point, auto wash. This jumbo has a small body, runs with the crawler, can climbing flexibly on large slop. Working with electric motor can improve the working environment a lot, reduces noise, dust and energy consumption. The flexible hydraulic rock drill can work on the section, roof, side and floor. The jumbo cannot only drill blast hole, according to the basis of section, it also can drill bolt hole conveniently with our patent impeller.

Item		Parameter
Body	Overall size （l×b×h）mm	8640×1250×2450
	Hole diameter mm	φ27～φ45
	Drill pipe length mm	3090
	Hole depth mm	2700
	Drilling speed m/min	0.8～2
	Section （b×h）m	2.5×2.5～5.5×4.5
	Total power KW	45+2.2+7.5
	Total weight T	9.0
Bottom	Min. turning radius m	Spot turn
	Running speed km/h	≤2.5
	Climbing capability	20°
Boom	Up and down	up55° down16°
	Swing boom	inner14° outer47°
	Compensation mm	1500
	Rotation	positive180° negative180°
Thruster	Pitching	down105° up15°
	Swing angle	inner45° outer45°
	Total length mm	4580
	Distance mm	2700
	Max. Propulsion N	9000
Hydraulic rock drill	Model number	HYD200
	Impacting oil pressure MPa	14～16
	Impacting flow L/min	30～45
	Torque N·m	60～260
	Impacting energy J	100～200
	Impacting frequency Hz	34～67
	Rotation speed r/min	200
	Hole diameter mm	φ27～φ45
	Weight kg	115
Hydraulic system	Impacting loop pressure Mpa	16
	Drill pipe rotation loop pressure Mpa	15
	Compensation loop pressure Mpa	10
	Boom loop pressure Mpa	17.5
	Propulsion loop pressure Mpa	10
	Leg extension loop pressure Mpa	18.5
	Running loop pressure Mpa	15
Air system	Drop tank air pressure Mpa	0.03
	Blowing hole air pressure Mpa	0.7
	Rock drill air pressure Mpa	0.4
Water system	Rock drill water pressure Mpa	0.8-1.5
Water system	Colder water pressure Mpa	0.6
Electric system	Installed power KW	45+7.5+2.2
	Supply voltage V	380/660
	Rated current A	84.2/48.6
	Electric motor rotation speed r/min	1470
	Switch box	Explosion Insulated & intrinsically safe

Payment Terms:	TT/LC

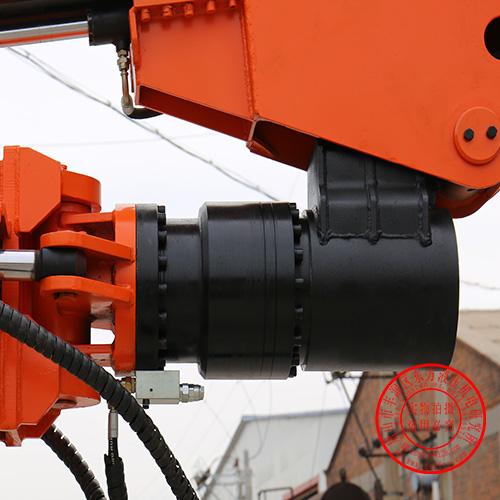

Product Image
