INTRODUCTIONS

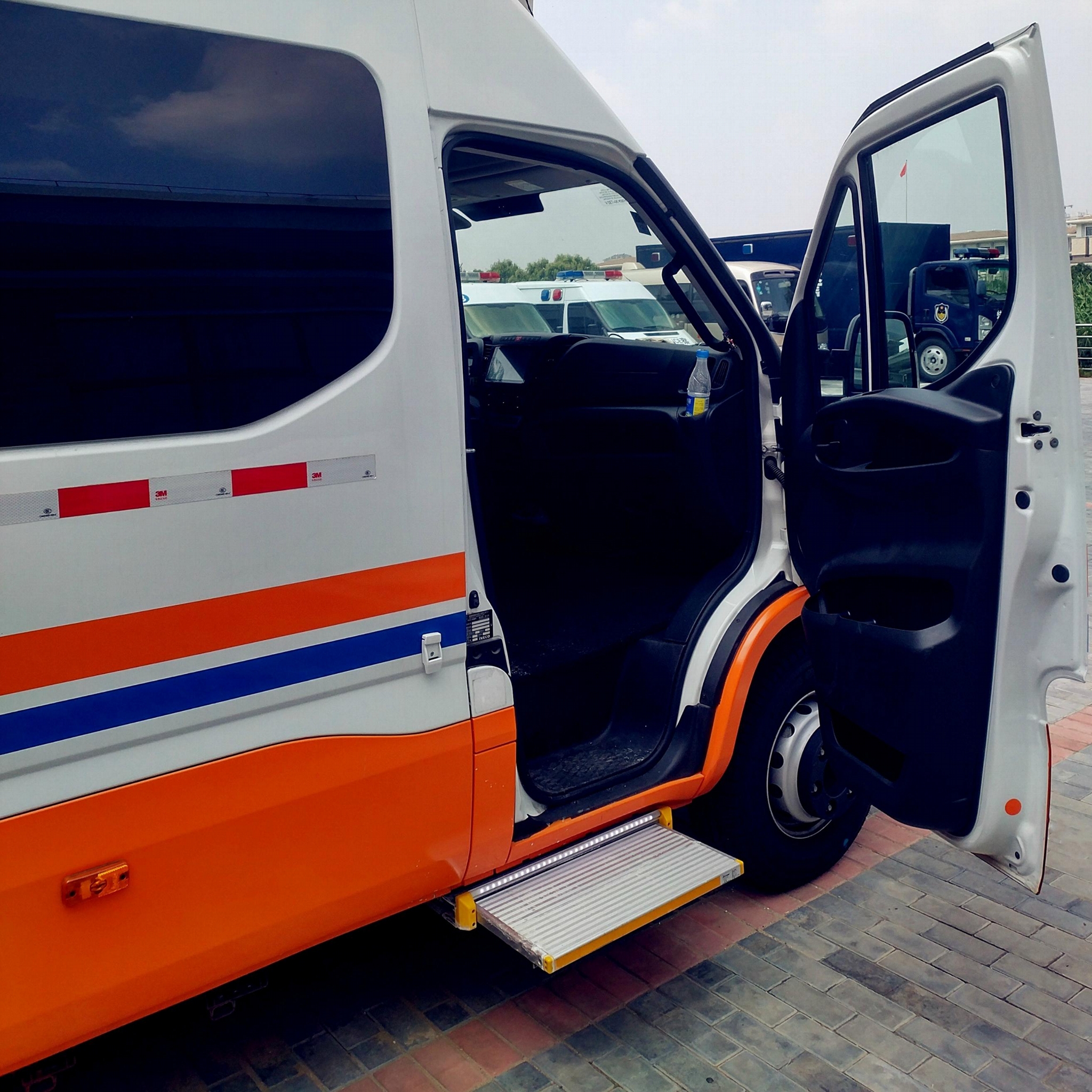

• ES-S series electric sliding step is a kind of cassette steps which can help passengers to get on vehicles easily.
• It is designed to fit on the range of vans, minibuses, taxi, motor homes, ambulances and so on.
• It is electrically operated slide in and slide out cassette step providing safe access to vehicle.
• It's driven by motor, voltage can be 12Vdc or 24Vdc.
• It is available with sensitive edge and illumination, in both fully automatic and fail safe operation all controlled from our unique control box.
• The main material is aluminum which is light and has good corrosion resistance.
• It can be operated by a switch or gang controlled by door.
• This step can work steadily, reliably and safely.
• We have different steps with several specifications, which can meet different requirements.

ADVANTAGES

• Manual emergency function;
• door interlock function;
• sensitive edge;
• 15kg sensitive loading function;
• strong pushing function to clear dust;
• auto sleep mode;
• warning in case of improper installation;
• self-protection in case of wrong connection;
• LED and LED cover are equipped as standard
• Test weight is 500kg

TECHNICAL SPECIFICATIONS

Voltage: 12Vdc or 24Vdc;
Power: 30W;
Loading capacity: 250Kg;
