ZYD-A Automatic Oil Purier with PLC System

Model:ZYD-A
Brand:REXON
Origin:Made In China
Category:Industrial Supplies / Machinery / Filters
Label:Oil Purifier , Oil Renew , Oil Filtration
Price: US $5000 / Set
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

Chongqing Rexon Oil Purification CO.,LTD

Free MemberChong Qin - China
Live Chat:
Last Online:24 Sep, 2020

Product Description

Why Need Rexon Oil Purifier?

Present and future transformer ratings require high quality and high purity insulating oils at the point of use. The increasing voltage and rating of the modern transformer and electrical apparatus results in greater electrical stress in insulating material and fluids. To handle these greater stresses, oils with better dielectric qualities are required. Also lower residual water content in insulating fluids and material must be maintained. The proper treatment and upgrading of the insulating fluid will result in the improvement of the properties of the entire insulating media of power transformers. The principal functions of the insulating fluid are to serve as a dielectric material and as an effective coolant. To perform these functions, the insulating fluid must have the necessary qualities at the time of initial impregnation and filling at the factory and later maintain the same quality in the field operation.

Rexon’s High Vacuum Oil Purifier upgrades the new or used electrical insulating fluids including transformer oils, polybutenes. These systems and equipment were developed as a result of 50 years of experience in vacuum treatment of electric insulating fluids.

The machine can remove the free water, soluble water, gas, acid, free carbon(polarity material) and other impurities high-efficiently, increasing the pressure force and quality of oil, improving the insulation oil dielectric value, making sure the electric device running safely.

The ZYD mainly purifies the insulation oil, which includes transformer oil, break oil, capacitor oil, switch oil, mutual oil, cable oil and so on. According to the IEC1039-90 (International Electrochemical Commission) standard, the insulation oil specification contains NT, NTD, NC and NY. Our machine can regenerate those oil effectively. Meanwhile, this machine can inject oil into the electric device under the vacuum situation. Besides the insulation oil, ZYD also can purify any non-emulsification oil. It is good oil purification system for the power station, transformer station, and other relative line.

Feature



1.High automatically (ZYD-A): This model adopts the PLC full automatic system, operate by touch-screen, with dynamic display and can connect computer to operate. All working processes via the CPU to carry out auto-control by central data processing, and processes kinds of variable feedback data immediately, and then sets instructions.







2.This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.







3.The machine adopts the double-infrared liquid automatic controller, pressure automatic-protector and the high effective equipment for degass, so it is easy to operate.







4.Besides the common vacuum oil purifier’s function of dewatering, degassing, and removing the impurity, this machine can regenerate the seriously bad oil by separating the electric-polarity materials, such as deeply oxides and free carbon from the oil effectively. The treated oil can reach the specifications of the new oil, such as the oil dielectric strength, flash point, acid value and oxidationresisting etc.







5.There is a interlocked preventive device, which connect vacuum pump, oil pump and heater. It can be power off automatically if there’s something wrong with anyone of the three parts. Avoiding the oil purifier dry, leak oil and be electric.


Machines you may also interested in:
. High effective vacuum transformer oil purifier
. Double Stage vacuum transformer oil recycling plant
. Ultro-high voltage vavumm insulating oil regeneration plant
. Mobile Type vacuum transformer oil renewing system
. Vacuum lube oil/hydralic oil retreatment machine
 Turbine oil dehydration purifier
. Portable oil purifier
. lighe oil/fuel oil/diesel oil refinery plant
. Used engine oil /motor oil regeneration purifier

Contact us for more information please.






Product Image

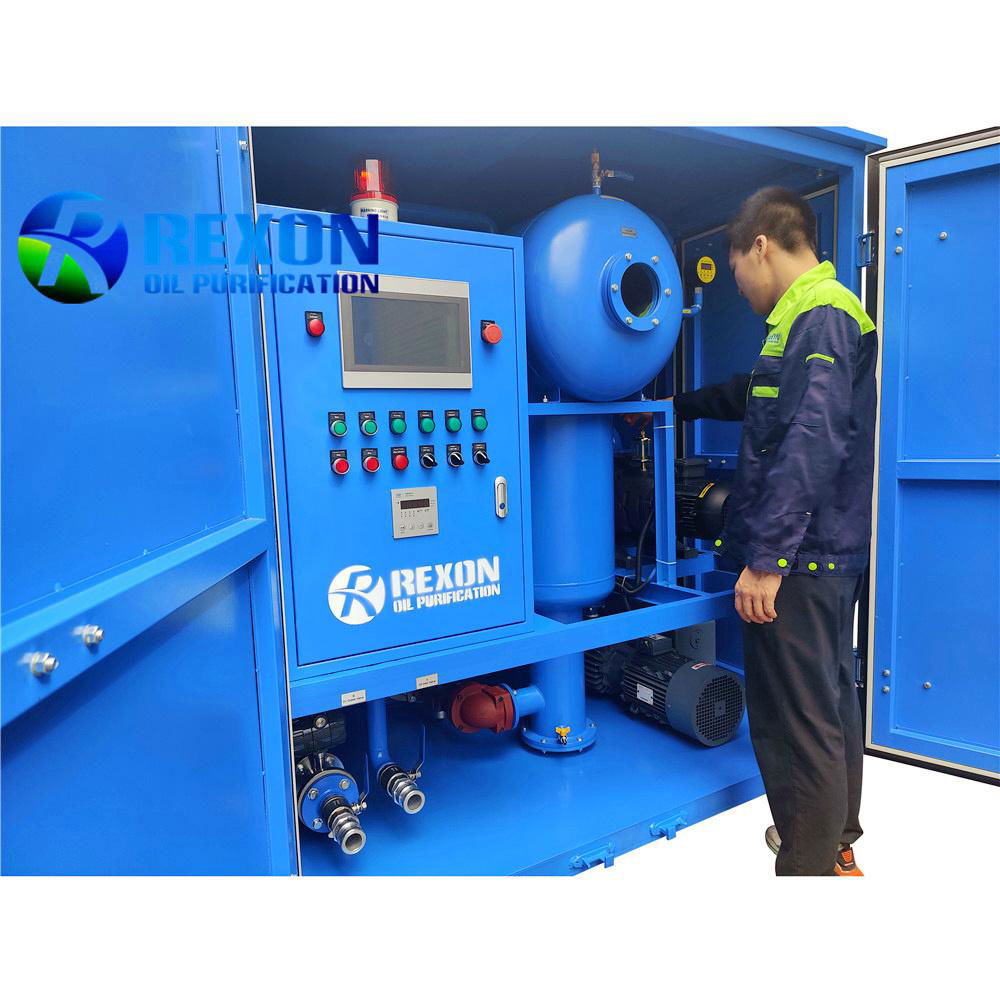

ZYD-A Automatic Oil Purier with PLC System 1
