| Model: | DMSQ-1700HF |
|---|---|
| Brand: | Yiming |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | Machinery , Grinding Machine , Grinder Machine |
| Price: |
US $21550
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:13 Mar, 2019 |

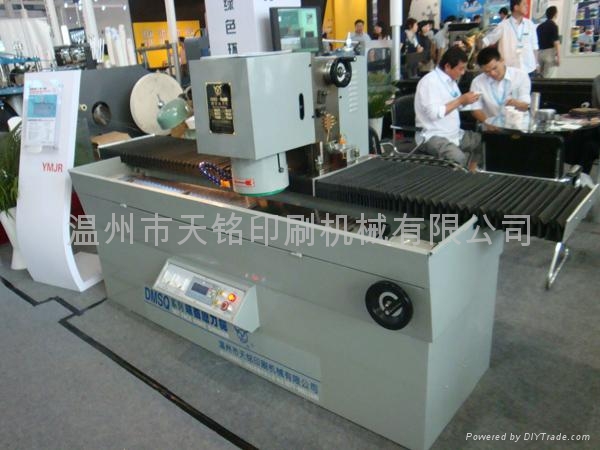

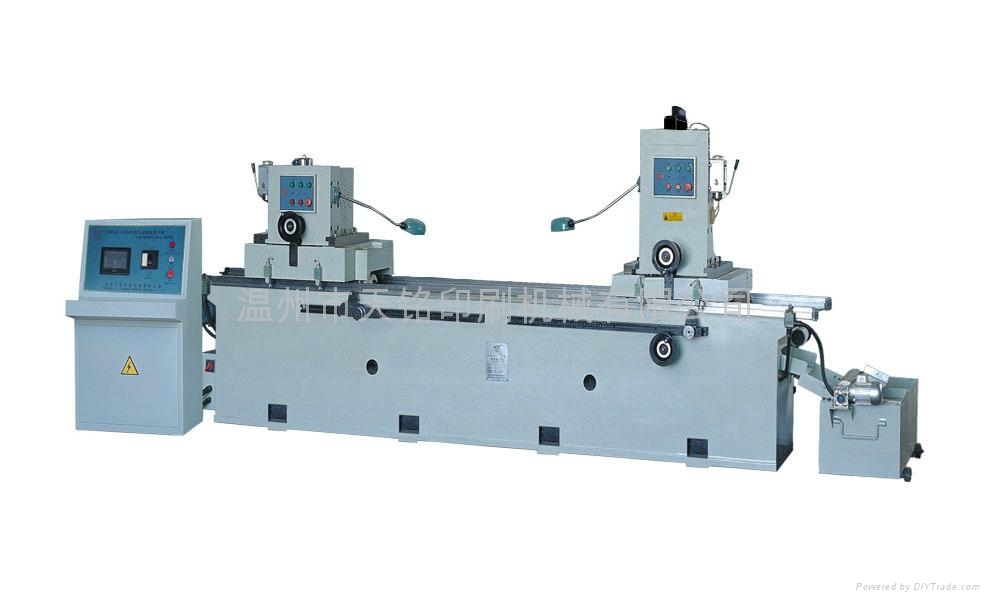

Automatic Knife Grinding Machine DMSQ-HF type
Automatic Knife Grinding Machine DMSQ-HF type’s body is the gantry-type body which adopts the carbon constructional quality steel; Its wheel head transmission is rolling positioning linear guide; Rails can be replaced, that the machine can last longer, travel more stable drive.
Automatic feed grinding wheel by the PLC program control system, automatic control, and memory, storage and dynamic tracking, simple operation, greatly reducing the time to prepare work piece ; can automatically adjust the coarse grinding, grinding times, the Brothers more convenient, is Medium-sized printers.
It is he best choice for small and medium sharpening room.
Automatic Knife Grinding Machine DMSQ-HF type Main function/Technical parameters
● Water-cooled motor grinding wheel head
● Polishing grinding head：German East Y series three-phase asynchronous motor
● Grinding head can move back and forth
● Frequency Control (travel mobile)
● Automatic feed grinding
● Rack and pinion
● Gantry body
● Magnetic chuck tool holder table
● Worm drive tool holder
● Table rotation angle: 0～±90°
Automatic Knife Grinding Machine DMSQ-HF type Main Function Deployment (excerpt)
● Imported linear guide rail
● Centralized refueling device
● Knife debris removal equipment: Combined wool polishing wheel
● Imported electrical components (optional device)
● Scraper jig (optional device)
Automatic Knife Grinding Machine DMSQ-HF type Main technical parameters
Wheel Size Φ200x100x 150mm
Maximum grinding width taken 22°as final 300 mm
Effective height of the grinding wheel and table 80 mm
Table rotation 0～±90 °
Grinding rotation speed 0-1800 r/min(Adjustable Frequency)
Grinding movement speed 3～15m/min (Adjustable Frequency)
Movement electromotor power 0.55 KW
Grinding head motor power 4 KW
Pump motor power 0. 25 KW
Note: Automatic Knife Grinding Machine DMSQ-HF type, there grinding the length of 1.7m, 2.2m, 2.6m,2.8m,3m,3.2m,3.5m,4.0m,4.5m, 5m,Total of 10 specifications.
