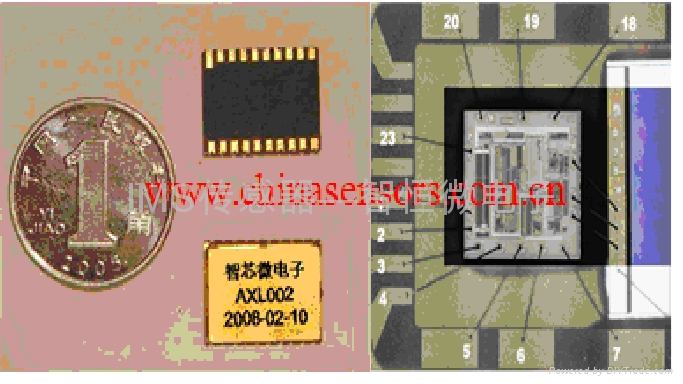

ASIC functions
§ Offset Calibration: Calibration of capacitive sensor offset
§ Span Calibration Calibration of capacitive sensor span
§ Self test of ASIC(Build in switch capacitance circuit to test the ASIC)
§ Self test of sensor(by applying a voltage to the capacitive accelerometer, the self test function test the integrity of the sensor during field operation
§ Bandwidth adjustment (low pass 500Hz or 2000Hz), 50Hz with external capacitor
§ Clock Frequency adjustment
Table 1 Performance Characteristics of the ASIC
|
Characteristic |
Min |
Typ |
Max |
Unit |
Measured |
|
Supply Voltage |
4.75 |
5 |
5.25 |
V |
Yes |
|
Supply Current |
|
5 |
|
|
6 |
|
Full Scale output Range |
0.5 |
|
4.5 |
V |
Y |
|
Sensitivity |
5 |
10 |
25 |
mV/fF |
Y |
|
Linearity error |
|
0.5 |
|
%FS |
|
|
Freq. 3dB point |
|
2/0.5/0.05 |
|
KHz |
|
|
Clock Noise |
|
|
5 |
mV-pp |
|
|
Intrinsic Sensor offset Cap Trimming |
|
|
80 |
fF |
|
|
Self Test output change |
|
|
|
|
|
|
Self test Input Logic L |
|
|
1 |
V |
|
|
Self test Input Logic H |
4 |
|
|
V |
|
|
Output drive capability |
|
|
0.25 |
mA |
|
|
Power Up response Time |
|
|
500 |
msec |
|
|
ESD proection |
2 |
|
|
KV |
|
Performance Specifications for the ASIC are valid at these conditions: (V+=5V, TA=-40oC to 90oC). Unless stated otherwise.
