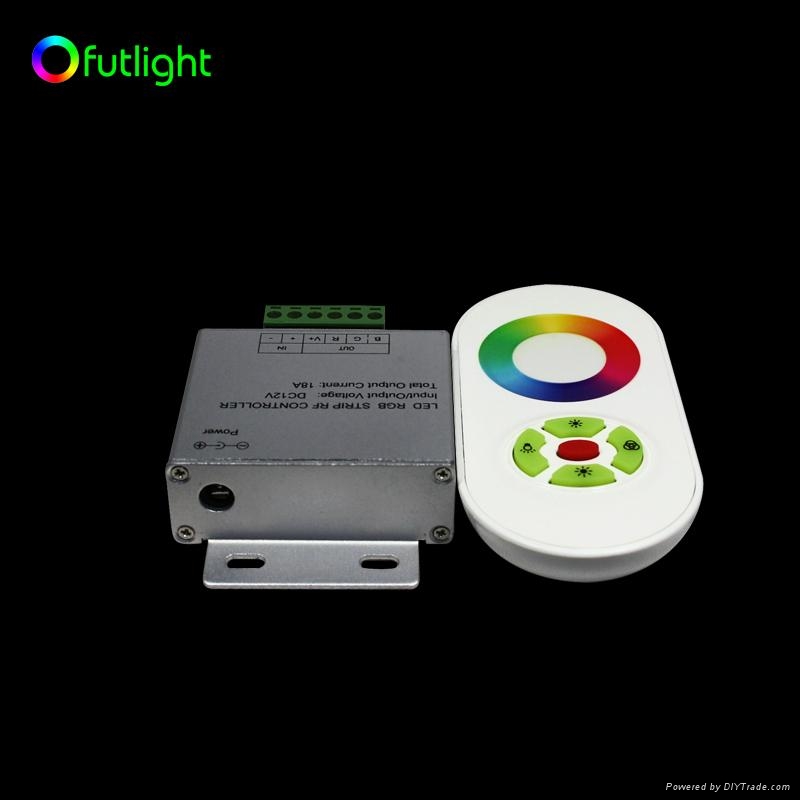

RF Wireless RGB LED Controller

Model:FUT-005N
Brand:futlight
Origin:Made In China
Category:Consumer Electronics & Lighting / Remote Control
Label:led controller , led dimmer , led remote control
Price: US $15.5 / set
Min. Order:50 set
Inquire Now Add to Basket

Member Information

Detail

Futlight Optoelectronics Co.,Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:27 Nov, 2011

Product Description

 LED Strip Light RF Wireless RGB LED Controller



Features:
Use RF signal for telecontroller, free and easy operation,no direction in 20 meters;
Wide options of over 640,000 colors,change according to your mood
8 grades brightness adjusting, to achieve real energy-saving ;
With auto & manual color change mode
Long life, lifespan up to 40000hours;
Low energy consumption;
No UV radiation, no stroboflash
Accord with European Union CE, RoHS directive.




Dimension:





Specifications:
Name:          LED Controllers
Input Voltage: DC12V,DC24V(optional)
Connection type: Common anode
Radio frequency: 433.92MHz
Receiver sensitivity: -105dbm
Radio receive way: ASK
Max STDBY current: 10mA
Max load: 5A(each circuit)
Control mode: PWM
Control way: 3 ways , respectively corresponding R,G,B three colors
Static power consomption: 30LED/M : ≤5.4W      60LED/M:  ≤10.8W
Static current: 30LED/M : 450mA      60LED/M:  900mA
Working temperature:  -20~80 degrees
Material :Controller: aluminum    remote: ABS+PC
Life span: 50,000h
Size:Remote:114×56×22mm        Controller: 65×38×25mm
Packing:7*7*12.5cm
G.W.:0.15kgs/set
Telecontrol distance: 20m
Max no. of memory telecontroller: 6pcs




Application:





 Package:





 Qty:1pcs remote

 Size:70×30×130mm

 GW: 0.063Kg
