| Model: | Ltl-5210 |
|---|---|
| Brand: | OEM available |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | hunting camera , scounting camera , Digital Hunting Cam |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:16 Jan, 2018 |

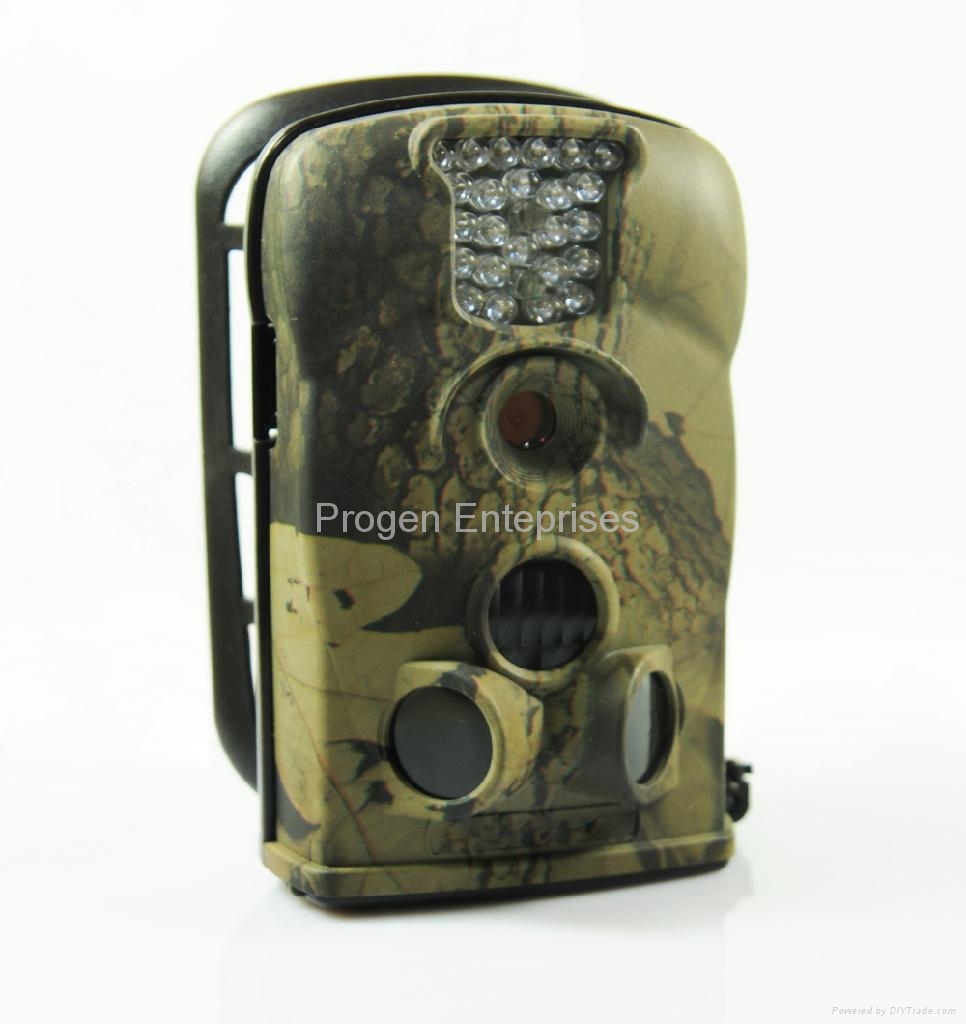

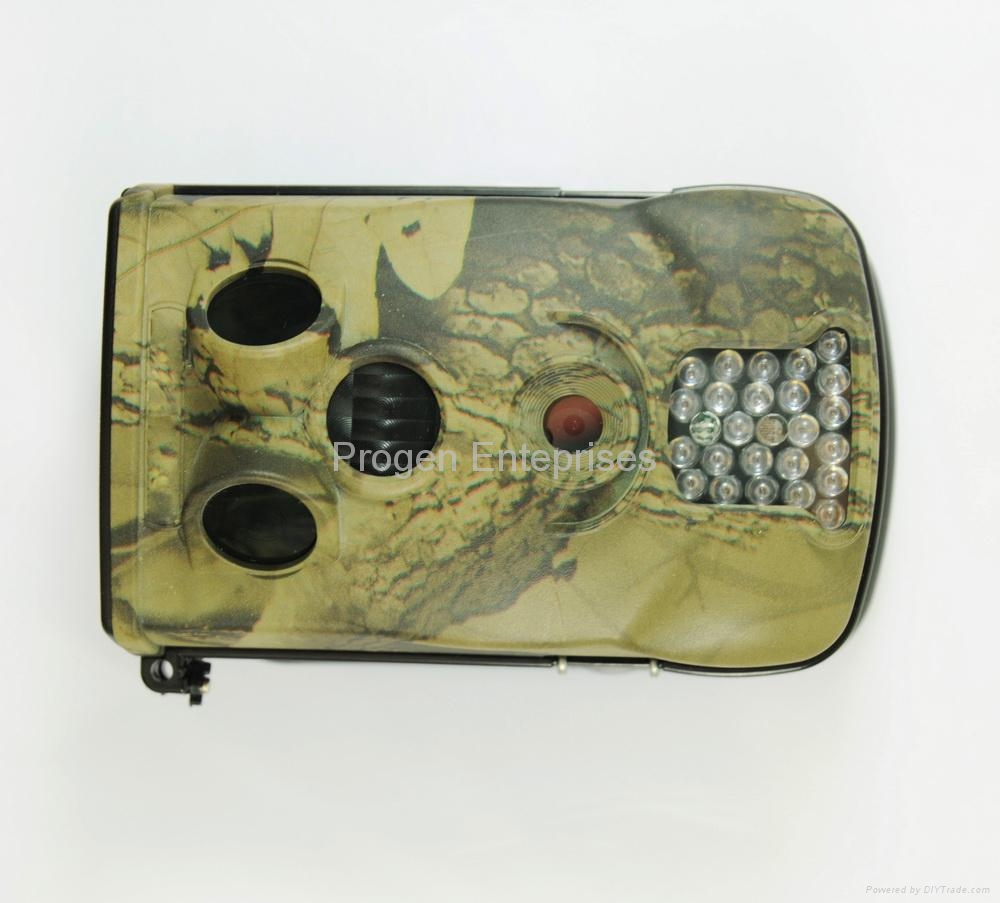

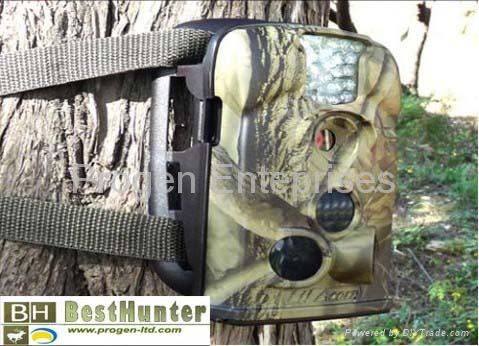

This new model 5MP scouting camera (also called game camera/trail camera) is a scouting device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest (ROI),which is detected by a highly sensitive Passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically. --
OEM ORDER IS WELCOME,YOUR LOGO CAN BE SILKPRINTING, EMBOSSING OR METAL PLATE
Specifications :
|
Image Sensor |
5 Mega Pixels Color CMOS |
|
Maximum Pixel Size |
2560x1920 |
|
Lens |
F=3.1; FOV=52°; Auto IR-Cut |
|
IR-Flashlight |
65 Feet/20 Meters |
|
TFT Display Screen |
48x35.69mm (2.36");480(RGB)*234DOT; 16.7M color |
|
Operation Keypad |
6 keys |
|
Memory |
SD Card (8MB ~8GB) |
|
Picture Size |
5MP = 2560x1920; 3MP = 2048x1536 |
|
Video Size |
640x480: 20fps; 320x240: 20fps |
|
PIR Sensitivity |
PIR with 3 sensitivity levels: High/Normal/Low |
|
PIR Sensing Distance |
65ft/20m（Below 77°F/25°C at the Normal Level） |
|
Preparation PIR Sensing Angle |
Left and right light beams form an angle of 100° Each lens covers 10° |
|
Shot PIR Sensing Angle |
35° |
|
Operation Mode |
Day/Night |
|
Trigger Time |
1 Second (When using the 2G SD card) |
|
Triggering Interval |
0sec. - 60min. Programmable |
|
Shooting Numbers |
1~3 |
|
Video Length |
1-60sec. Programmable |
|
Camera + Video |
First take Picture then Video |
|
Playback Zoom In |
1~16 Times |
|
Time Stamp |
Time Stamp On /Off; Include serial no., temperature and moon phase |
|
Timer |
On /Off Timer Set |
|
Password |
4 Protection Numbers |
|
Device Serial No. |
4 Digits Set by Yourself |
|
Time Lapse |
1 Second~24Hours |
|
Power Supply |
4*AA,Can add to 8*AA(Need the additional battery box) |
|
Stand-by Current |
0.4mA |
|
Stand-by Time |
3~6 Months(4*AA~8*AA) |
|
Auto Power Off |
Auto power off in 2 minutes while no keypad controlling |
|
Power Consumption |
150mA (+500mA when IR LED lights up) |
|
Low Battery Alarm |
4.2~4.3V |
|
Interface |
TV out (NTSC); USB; SD Card Holder; 6V DC External |
|
Fix Method |
Strap, Tripod Nail |
|
Waterproof |
IP54 |
|
Operation Temperature |
-22~+158°F /-30~+70°C |
|
Operation Humidity |
5% ~ 95% |
|
Certificate |
FCC & CE & RoHS |
Package included :
Digital camera: 1 pcs
Additional battery box(optional): 1 pcs
TV AV IN cable: 1 pcs
USB cable: 1 pcs
Strap: 1 pcs
External DC cable: (optional) 1 pcs
Instruction Manual: 1 pcs
Warranty Card: 1 pcs
