80W Universal Laptop AC Adapter with DC11 to 15V Input
Product Description
Key Specifications/Special Features:
- Input: DC11 to 15V
- Switchable voltage options: DC15V/DC16V/DC18V or 18.5V/DC19V or 19.5V/DC20V/DC22V/DC24V
- OCP/OVP/SCP/OTP protection
- Efficiency: >87%(TYP)
- Choose the interchangeable smart tip according to output voltage
- Power Max: 80 W
- DC plug-in Connector: 8 tips
- Tip A: 6.0mm x 4.5mm x 1.4mm (Fujitsu/SONY)
- Tip B: 6.3mm x 3.0mm (NEC/Toshiba)
- Tip C: 5.5mm x 2.5mm (HP/Fujitsu/Toshiba/NEC/LENOVC)
- Tip D: 5.5mm x 2.1mm (Acer)
- Tip E: 5.5mm x 1.7mm (Acer/Toshiba/Delta)
- Tip F: 4.75mm x 1.7mm (ASUS/HP)
- Tip G: 4.0mm x 1.7mm (SONY LASTCST MINI)
- Tip J: 3.5mm x 1.35mm (SHAR/SHARP)
- The following plug-in connector can choose according to your needs
- Tip I: DELL 3pin
- Tip J: TOSHIBA 4pin
- Tip K: IBM 7 x 5.5mm
- Tip L: DELL 7.4 x 5.0mm
- Tip M: HP 7.4 x 5.0mm
- Tip N: ASUS 2.5 x 0.5mm
- All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
| Payment Terms: | 1. T/T 2. L/C AT SIGHT 3. CASH 4. WESTERN UNION |
| |

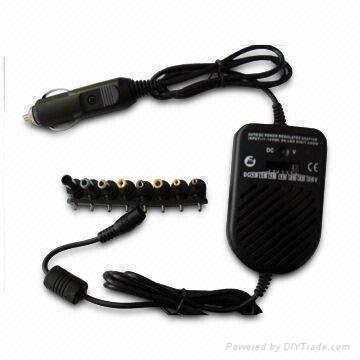

Product Image
