| Model: | AV-B126CXEWV |
|---|---|
| Brand: | AmViewing |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | mini camera , mini bullet Camera , bullet Camera |
| Price: |
-
|
| Min. Order: | 5 pc |
| Last Online:28 Jun, 2012 |

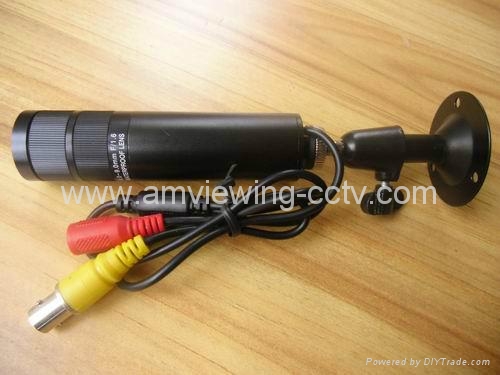

700TVL Waterproof bullet camera,4-9mm varifocal lens
550TVL,650TVL,700TVL available;
|
Model
|
CS-B126CXEWV
|
|
Image Device
|
1/3" Sony EX-View HAD CCD,EFFIO DSP
|
|
Horizontal Resolution
|
700TVL
|
|
Minimum Illumination
|
0.01Lux
|
|
Effective Pixels
|
PAL:795(H)*596(V);NTSC:811(H)*508(V)
|
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
4-9mm vari-focal lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V±10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
Ø26(D)x98(L)mm(105mm with lens cap for length)
|
| Payment Terms: | T/T ,Paypal,Western Union |
|---|---|
