Circular Loom and PP woven sack production line

Model:	GS-YZJ-6-3
Brand:	Tiandi
Origin:	Made In China
Category:	Industrial Supplies / Rubber & Plastics Machine
Label:	circular loom , bag making machine , PP woven bag plant
Price:	-
Min. Order:	-

Inquire Now Add to Basket

Member Information

Anhui Tiandi Plastic Machinery Co.,Ltd

Free MemberAn Hui - China

Live Chat:

Last Online:27 May, 2023

Product Description

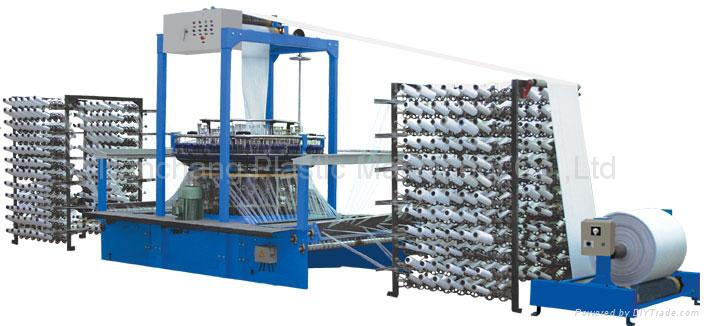

The newly developed Large type six shuttle high speed circular loom GS-YZJ-6-L suitable for all different purpose PP woven sacks, width of weaving cloth 1500mm-2200mm, max output 230m/per 8 hours. These circular looms have the advantages of high production efficiency, low noise, economical power consumption, easy operation and maintenance.

Advantages:	With the advantages of high production efficiency, low noise, economical power consumption, easy operation and maintenance The machine with double curves and it is equipped with the advanced off-warp, off-weft, off-out weft as well as the automatic halt control system of the run-out weft.
Main Technical Parameters:	Item: GS-YZJ-6 (Large) Mode of Motion: Oil Sliding Friction Type Quantity of Shuttle: six Folded Width of Bobbin Cloth; 1500-2200mm Quantity of Warp: 2800 roots Rotational Velocity of Main Motor: 60-85r/min Power of Main Motor: 7.5Kw Output per Eight Hours: 200-450m Measurement(L x W x H): Approx.16580mmx3500mmx3750mm Thickness of Film: 0.05mm, Width of Film: 2.5mm, Width of bag: 550mm

Product Image

Img 1
