| Model: | - |
|---|---|
| Brand: | Eglobal |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / Server & Workstation |
| Label: | thin client , pc station , pc station terminal |
| Price: |
US $50
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Dec, 2015 |
N430W based on cloud computing technical, one host with unlimited client users! 4 USB port, wireless/ USB mouse and keyboard supported. Excellent office work and also perfect in entertainment.
◆Buildin WinCE 5.0, support HOST OS Windows 2000/XP/2003/Vista/7/2008 server ◆Onboard CPU ARM926EJ 533MHz ◆Memory Onboard 64 MB RAM ◆All windows 32 bit or 64 bit OS(like XP, 2003, 2008, VISTA, WIN7...) and Linux ◆1280*1024 @85Hz, 16 bit color, Widescreen 1440*900 support
1 monitor+1 keyboard+1 mouse + 1 Multi media Thin Client PC Station Terminal N430W=1 traditional desktop computer. Build in WinCE5.0, can work stand alone without HOST too.
| |

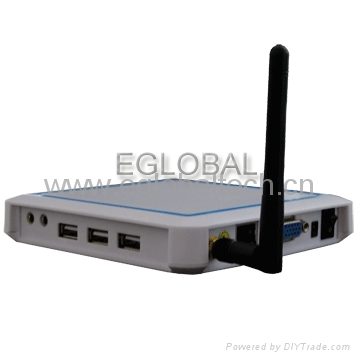

01 Speaker jack 02 Microphone jack 03 USB port for any kind of USB device 04 USB port for any kind of USB device 05 USB port for any kind of USB device | 06 Wifi Antena 07 RJ45 port for Cat 5e cable to Ethernet LAN 08 VGA monitor port 09 Power jack for DC 5V IN 10 Power Switch (on/off) |
Thin Client PC Station Terminal N430W let 2 to 100 more users share one desktop computer, turns 1 PC into 100 more PCs.
Thin Client PC Station Terminal N430W virtual desktops share the excess power of standard PCs and make computing simple and affordable. When using Thin Client PC Station Terminal N430W, you can save money by sharing the cost of a single PC among multiple users. And your users feel like they each have their own PC while they simultaneously share common applications—including web browsers, e-mail, office suites, and multimedia. Every user has their own keyboard, screen, settings, applications, and data files, so their experience is just like it would be if they were working at an independent PC.
Size | Access Device: 128*128 *26 mm |
Weight | N430W Terminal: 240g |
Power Supply | Input: 100-250 VAC, 50-60 Hz; Output: 5 VDC, 2 A |
Front LED Indicators | Power: connection to power supply |
Connection to Host PC | Standard Category 5 or 5e UTP cable or 6 STP cable (No limitation) |
Video Resolution | Support 640*480, 768*576, 800*600, 1024*768, 1152*864, 1280*1024, 1440*900 720*480, 1280*800, 1280*960, 1368*768, 1360*768,1366*768,800*600 @75Hz, 1024*768 @75Hz |
Audio | Stereo output via speaker port |
USB port | 4 USB ports on access device for any kind USB facilities |
Internal HW | l All solid-state design, no moving parts, no fans, no local user storage l Eglobal System-on-Chip with SDRAM and flash l Embedded Eglobal operating firmware (no local user OS) |
Reliability (MTBF) | >>100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at |
HW Security | No local user storage |
TERMINAL SERVICES SOFTWARE | |
Max # Users Per PC | No limitation when using a server host OS (i.e. Windows Server 2003) max 25 users when using a desktop OS (i.e. Windows XP) |
User Software | PC Station terminal services software |
Supported Operating Systems | All Windows OS (Professional) and Linux |
SYSTEM REQUIREMENTS AND OPTIONS | |
Kit Contents | EGLOBAL PC STATIONS Kit includes access terminal, power supply, software installation & user’s guide and other peripherals are NOT included and must be purchased separately. |
Recommended host configuration according to ures number
User No. | 1-4 | 5-10 | 11-20 | 21-30 | 31-50 | 51-57 | 71-100 |
Host PC CPU&Memory | >2.4 GHz P4 with 512MB | >3.0 GHz P4 with 2GB | Intel P4 3.2GHz with 3GB | XEON3.2CHz or XEON2.8GHZ DUAL with 4GB | XEON E5506*2 4G*4 DDR3/1333 ECC REG | XEON E5506*2 4G*6 DDR3/1333 ECC REG | XEON E7520*2 16G*4 DDR3/1333 ECC REG |
| Payment Terms: | TT, Western Union, MoneyGram, Paypal |
|---|---|
