| Model: | TM-900UVF |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | UV ink Oven , FlatPlane UV Curing , UV POLISHING |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 May, 2024 |

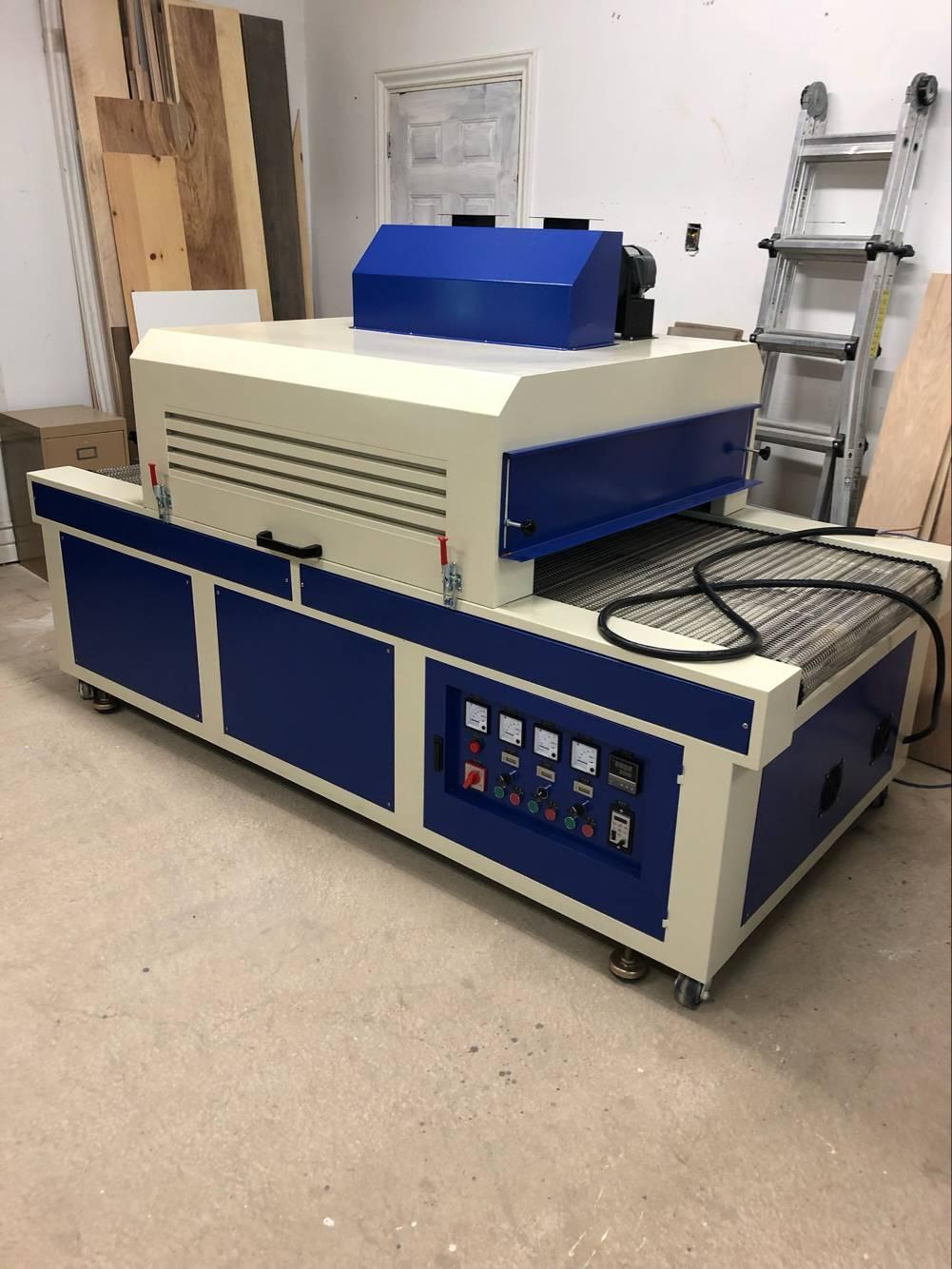

Our LAST NEW UV CURING MACHINE TM-900UVF be fit to UV drying PVC, Paper offest UV coating, UV polishing, UV glue, soft PCB after printing UV ink, plastic UV printing, electronic product UV spary, packing products UV drying.
Our UV LAMP is high UV frequency.( 360-720NM). It to fit amost UV INK, UV glue. Our UV Lamp useful time can sure 1000-1200 hour. TM speed change.
Belt runing speed is 0-10M/min.
Specifications :

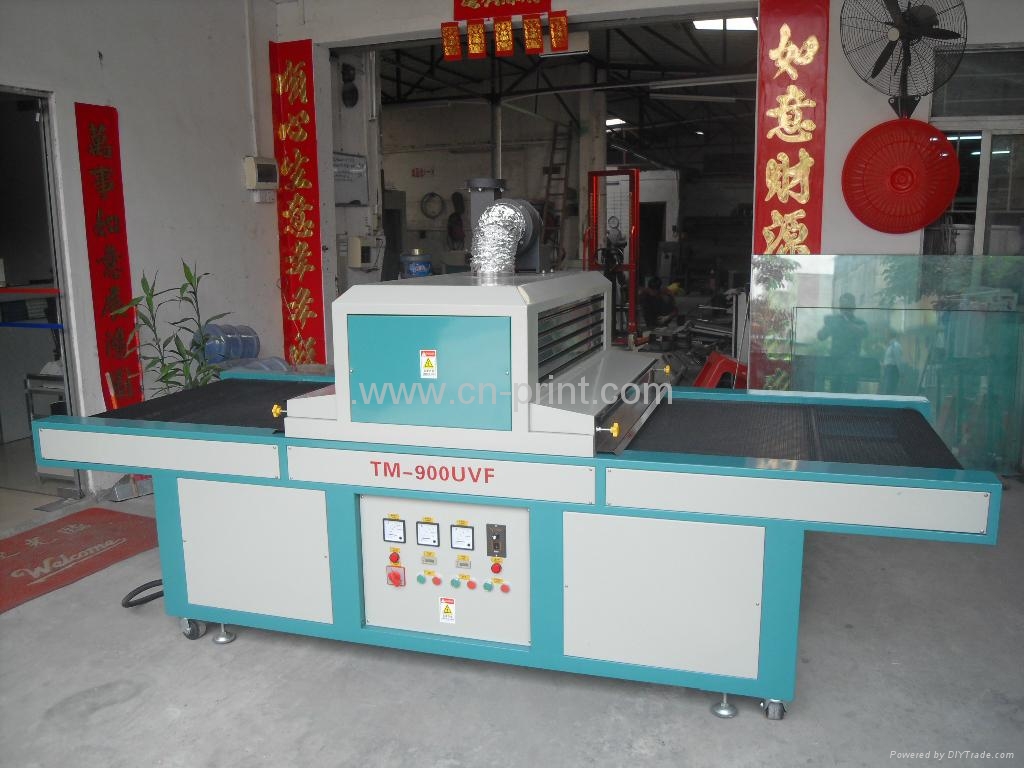

1. Model NO. TM-900UVF
2. UV Drying products：900*100*3000mm
3. Conveyor belt size：L3000* W900MM
4. UV Lamp power：2PCS*5.6KW /380V
5. Total wattage：13KW
6. Wind fan wattage: 500W/380V
7. motor wattage：1000W/1P/380V
8. Conveyor speed：0~10m/min
9. Speed change ways：Continue
10. UV Machine Dimension：L*W*H3020*950*1450
11. Weight：380kg
| Model number | TM-500UVF | TM-600UVF | TM-700UVF | TM-800UVF | TM-900UVF | TM-1200UVF |
| max product width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| max product length | 2000mm | 2000mm | 2000mm | 3000mm | 3000mm | 3000mm |
| UV Process shine area | 500*2000mm | 600×2000mm | 700×2000mm | 800*3000mm | 900*3000mm | 1200*3000mm |
| conveyer speed: | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min |
| UV Lamp power | 3KW ×2PCS/ | 3KW ×2 PCS/ | 3KW ×2 PCS | 5KW*2pcs | 5.6KW*2PCS | 5.6KW*2 PCS |
| UV Machine Dimension: | 2020×550×1200mm | 2020*650*1200mm | 2020*750*1200mm | 3020*850*1200mm | 3020*950*1200mm | 3020*1250*1200mm |
Free Fitting :
TWO pcs UV lsmp(5.6KW)
Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.
