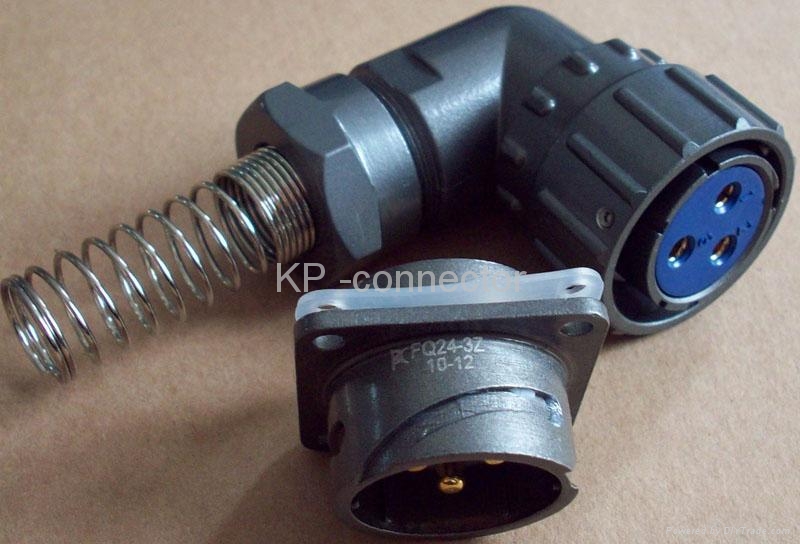

FQ24-2 angle circular connectors,water proof connectors

FQ24-2 angle circular connectors,water proof connectors 1

FQ24-2 angle circular connectors,water proof connectors 2

Model:	FQ24-2TR+Z
Brand:	KP
Origin:	Made In China
Category:	Electronics & Electricity / Electronics Stocks
Label:	connectors , water proof plug , Angle connector
Price:	US $10.8 / pc
Min. Order:	10 pc

Inquire Now Add to Basket

Member Information

Hangzhou Kaipu Electronic Technique Co.,Ltd.

Biz MemberZhe Jiang - China

Live Chat:

Last Online:27 Mar, 2024

Product Description

FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.

Product Ordering

FQ 24 — 3 T K —8

1 2 3 4 5 6

1. Name of series: FQ

2.Shell size : 24

3.Number of contacts: 2,3,4,610,19,26

4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,

Z2:Receptacle with O ring,ZY: circular recptacle

5. Type of contacts: K:socket，J:pin

6. Wire gauge: 6,7,8,9,10,12,14,16

Technical characteristics

The connector is allowed to submerged in 1m deep water for 30min.(Ip67)

Temperature	Relative humidity		Atmosphere		Vibration		Shock
-55°C~+85°C	(90~96)% at40°C		4.4KPa		10~200Hz,150m/s²		490m/s²
Current		Voltage		Contact resistance		Endurance
2A~5A		250V		≤10mΩ		500cycles
10A-25A		400V		≤5mΩ		500cycles

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥1000MΩ
High temperature	1000V	≥500MΩ
Moisture	800V	≥100MΩ
Low pressure	400V	-

Product Dimensions (Plug,Flange mounting receptacle)

Type	D1	D2	L1	L4	Cable sleeve	D3 Ø	L2	L3	S	L
FQ24	Ø33	Ø22.6	21	5.4	Ø 6,7,8	6	46	72	53	49
FQ24	Ø33	Ø22.6	21	5.4	Ø9, 10,12,14,16	10,12	46	77	53	49

Receptacle

Type	a	b	D1	D2	D3 Ø
FQ24	26+0.2	33	Ø24	Ø22.6	27.2

Cable receptacle

Type	D3 Ø	a	b	L1	Cable sleeve	L2
FQ24	27.2	26	33	21	6,10,12	46

Contacts number

Type	Number	Contact Ø &Current
FQ24	4,6	2.5, 25A/400V
	10	1.5,10A/400V
	19,26	1.0 ,3A/250V

Specifications:	FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment. Product Ordering FQ 24 — 3 T K —8 1 2 3 4 5 6 1. Name of series： FQ 2.Shell size : 24 3.Number of contacts：2,3,4,610,19,26 4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle, Z2:Receptacle with O ring,ZY: circular recptacle 5. Type of contacts: K:socket，J:pin 6. Wire gauge: 6,7,8,9,10,12,14,16
Advantages:	FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.
Export Markets:	world
Pricing:	us$10.8
Payment Details:	T/T
Min Order:	10
Ship Date:	2 WEEKS
Standard Met:	IP67
