| Model: | BD500 |
|---|---|
| Brand: | gemwell |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | wire taping machine , wrapping machine , wire wrap machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Jul, 2020 |

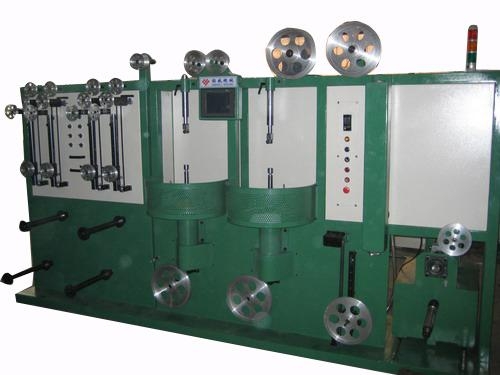

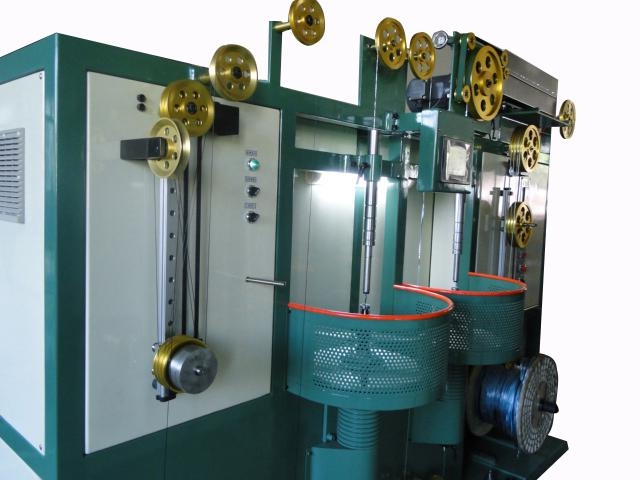

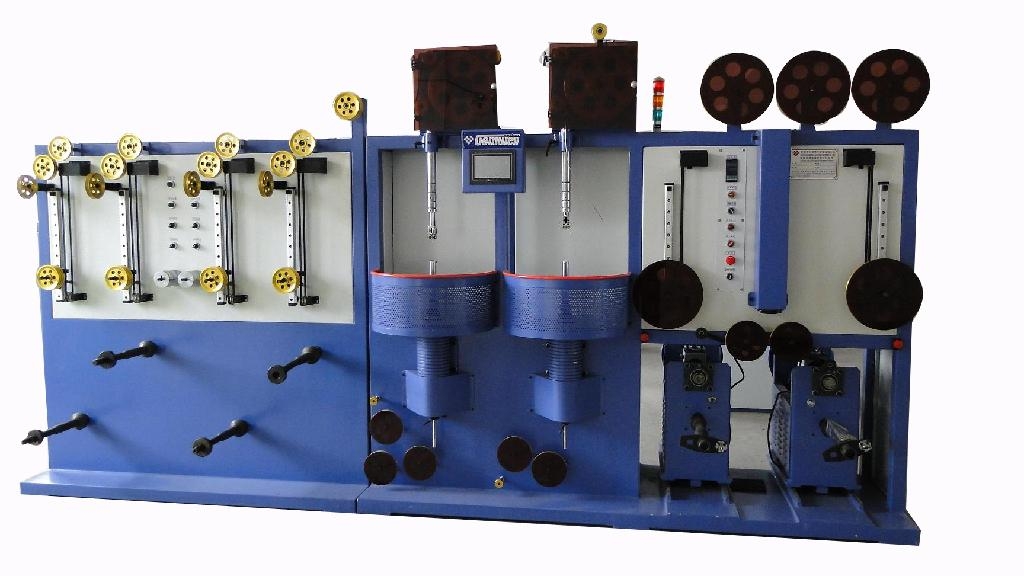

Vertical high speed wrapping machine:
high quality, high efficiency, tension steady, shielding rate accurate.
Application:
It is suitable for wire single layer or multi-layers continuously centrical wrapping.
Features:
1) Used widely:
It is used in wire single layer or multi-layers continuously centrical wrapping.
2) High efficiency:
High speed of rotation, the production efficiency is 2 times fast than traditional wrapping machine.
3) Tension steady:
Tension controlled by PLC control system, the tension of pay off and wrapping and take up all keep constant from start to end.
4) Shielding rate accurate:
Shielding rate adjustable by PLC control system. No matter acceleration or deceleration, it can be keep constant, finished wire surface keep smooth.
5) Good traversing:
Wire no damage through take up process.
Main parts:
1)powered pay-off
2)Wrapping device
3)Capstan and oven
4)Take-up
5)Control system
Technical parameter:
|
Type |
BD500 numerical control single/multi layers wrapping machine |
|
Core specification |
AWG32-AWG20 |
|
Wrapping material |
Aluminum foil tape, cotton paper tape, transparent tape, mica tape , teflon tape etc. |
|
Rotate speed |
Max 2000rpm. wire speed Max 28m/min |
|
Power |
1HP motor with frequency inverter, wrapping unit linkage with capstan motor |
|
Pay-off bobbin dia. |
Φ300-Φ500mm, optional, depend on your requirement. |
|
Take-up bobbin dia. |
Φ400-Φ630mm, optional, depend on your requirement. |
|
Pay-off tension |
Controlled by linear rail and slide block, wire tension keep constant from start to end. |
|
Tape tension |
Controlled by electromagnetical clutch, tape tension keep constant from start to end. |
|
Take-up tension |
Controlled by linear rail and slide block, wire tension keep constant from start to end. |
|
Traversing |
Wire no damage through take up process. |
|
Size |
4150x1400x1900 |
|
Weight |
1500kg |
