Product Description
level
Float Switches
|
| These switches are used to monitor liquid levels by opening or closing when a desired action point is reached. A variety of types are available using mercury and non-mercury tilt switches and, also, permanent magnets and reed switches. Common applications include sumps, pump-control systems, bilge pumps, below ground vaults and irrigation systems |
F11G
Data Sheet
Custom Request |
|
Customer can define：
Contact form: A, TYPE
Switching Voltage: 200VDC,140VAC
Breakdown 230VDC
Switching Current: 0.5A Max.
Carry Current: 1.75A Max.
Contact Resistance: 300 mOhms Max.
Operating temperature: 0~80C
Material: Polypropylene , P.P.
Float Diameter: 25.7mmX10mmX10mm ,
Specific gravity:0.75
pressure rating: 5kgs/cm3
NUT: M10X1.5 P.P.
washer: sillicon
wire: UL1007 24AW 80C 300V
Customer can define st, cable length, float size and connector
|
|
|

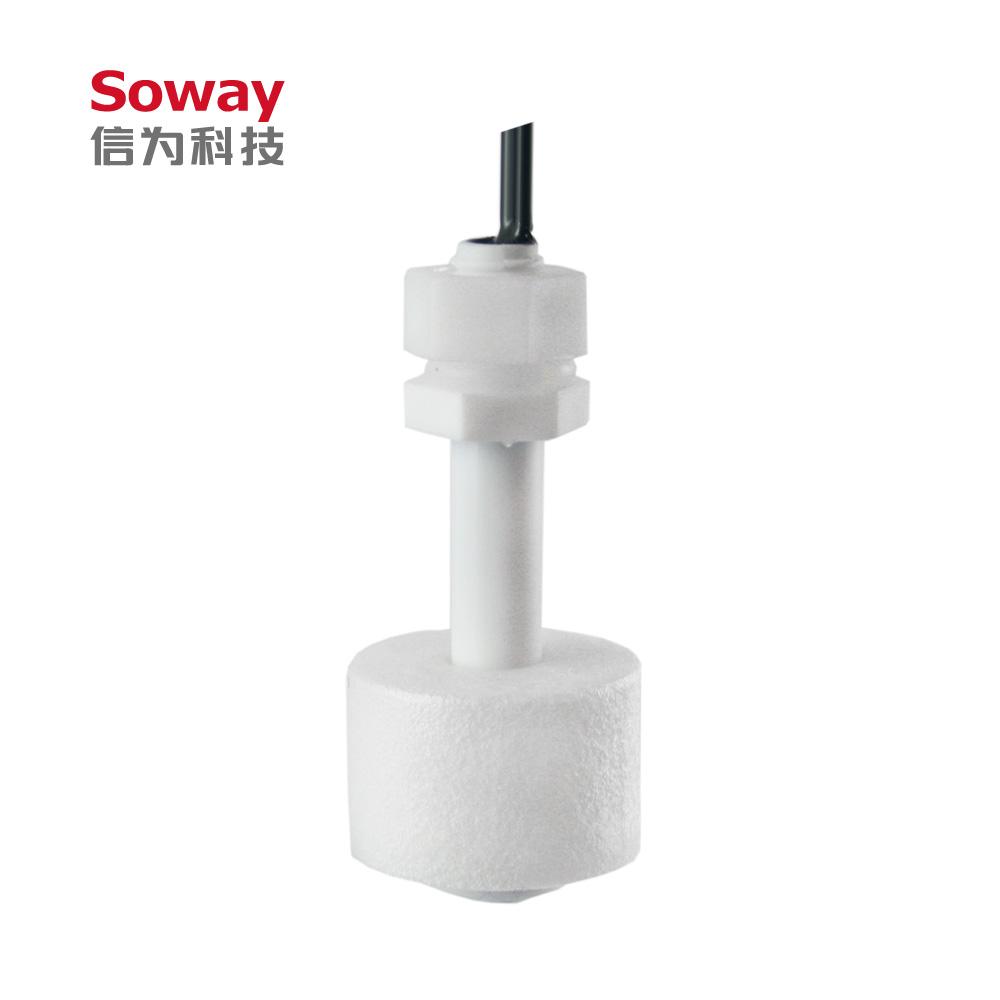

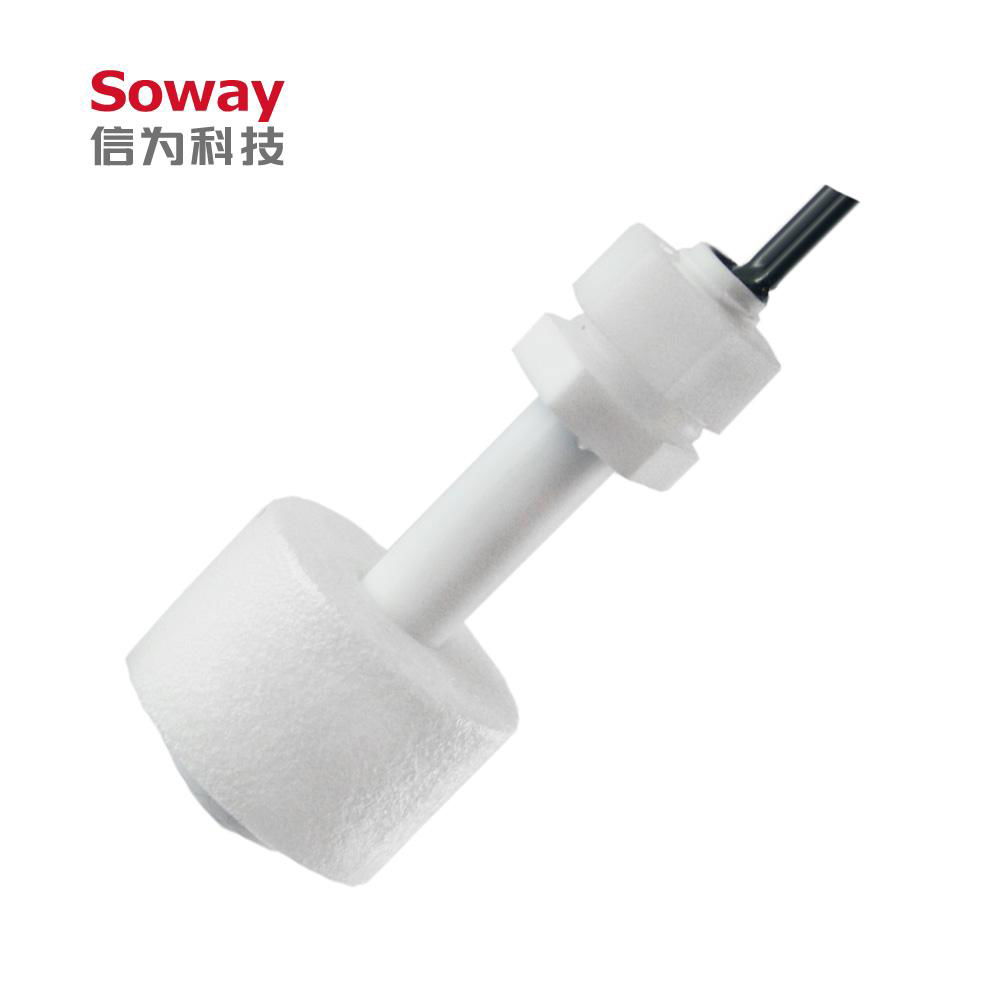

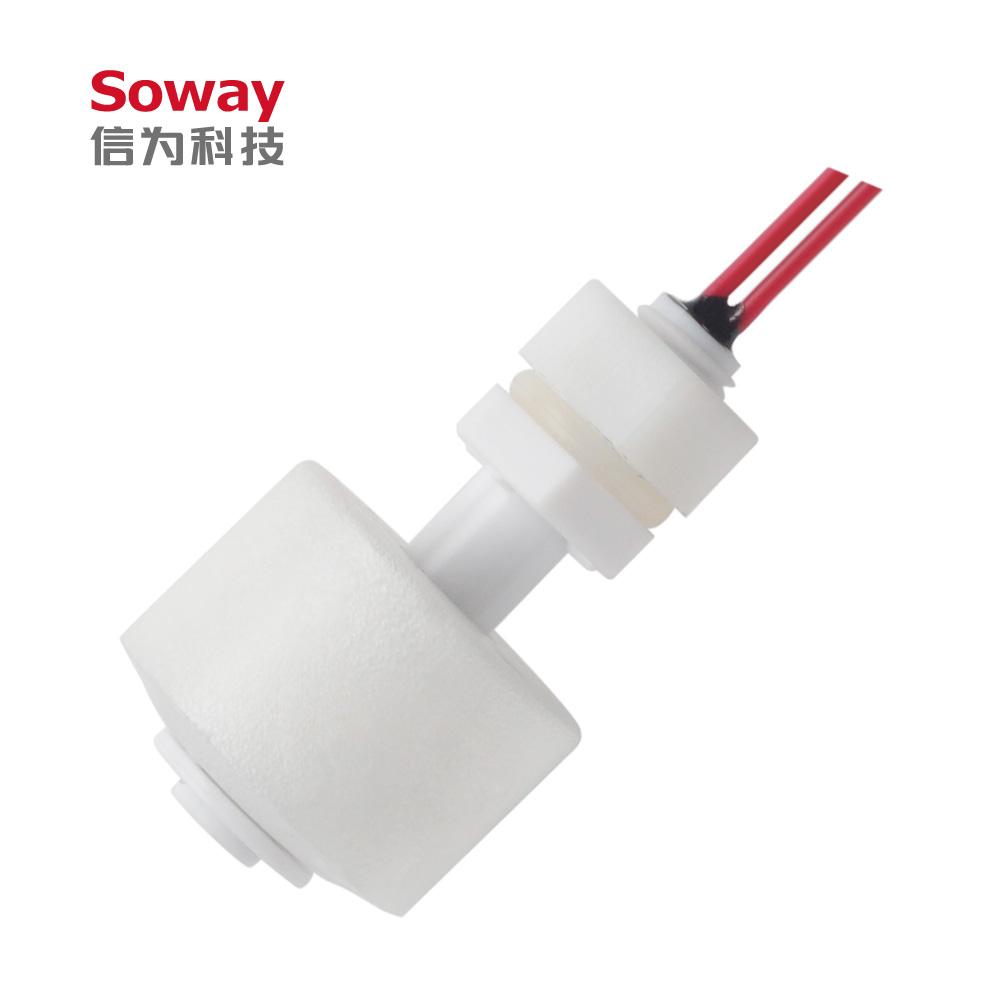

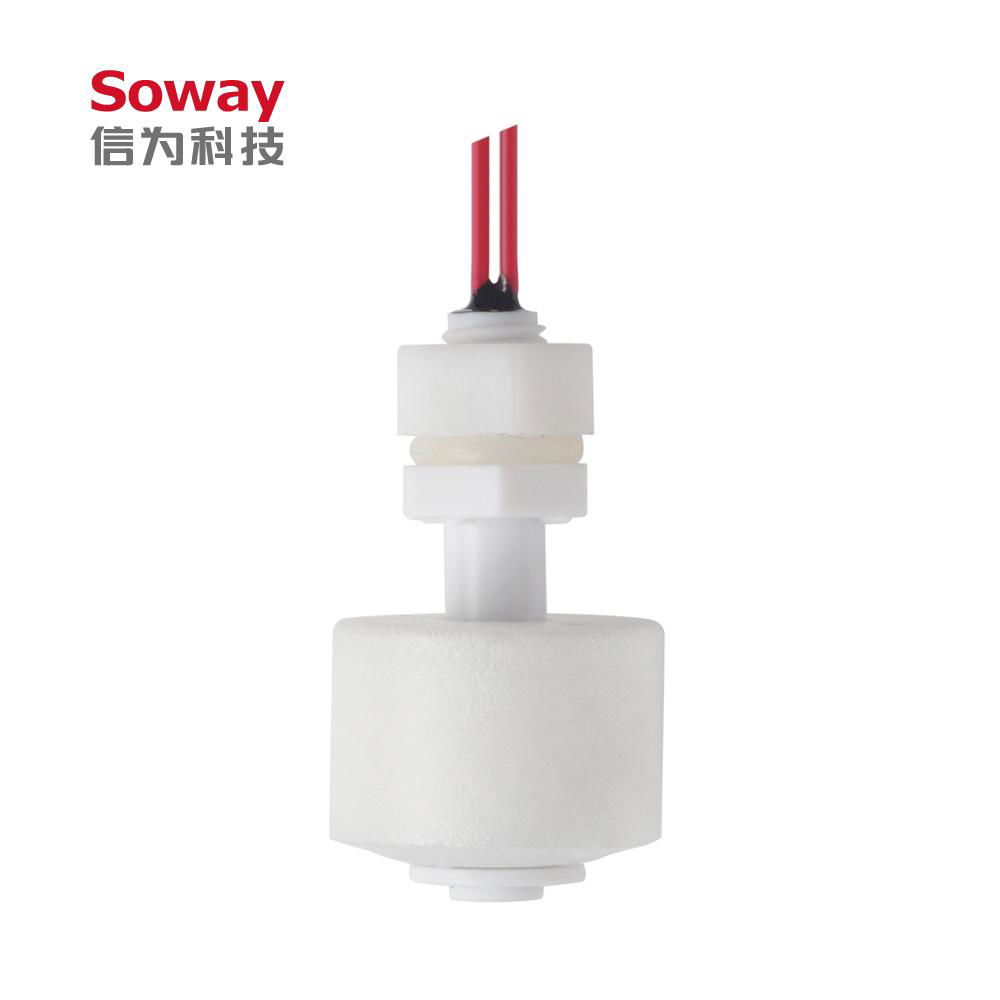

Product Image
