| Model: | Ecoo-PT |
|---|---|
| Brand: | ECOO -PT |
| Origin: | Made In China |
| Category: | Packaging , Printing & Paper / Printing Materials |
| Label: | ctp plate , ctp plate factory , ecoo ctp |
| Price: |
-
|
| Min. Order: | 3000 pc |
| Live Chat: | Last Online:20 Nov, 2017 |

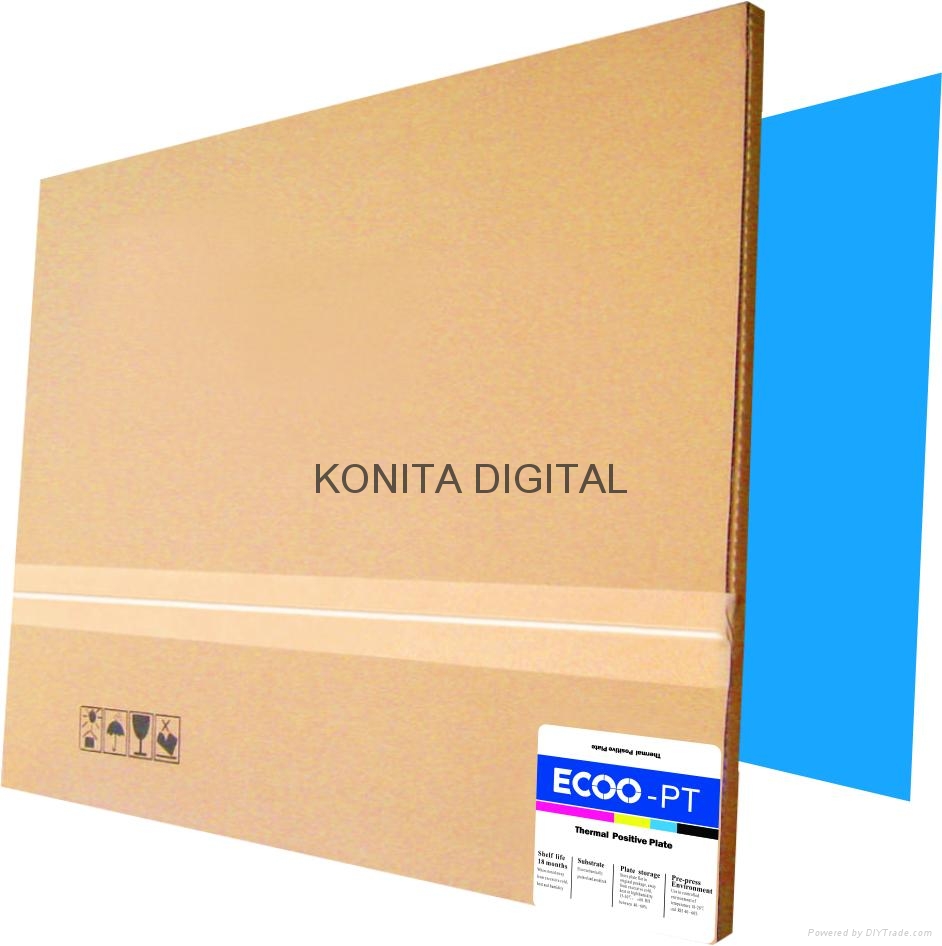

Ecoo-PT is a newly developed product by using of the latest technology, and is dedicated to be a cost-effective thermal CTP plate for the customers.
Through optimization of coating formulation and substrate treatment, ECOO-PT can achieve low exposure energy, or high-sensitivity, which prolongs the life of an expensive laser head; it also can achieve higher production efficiency by increasing the drum speed of an imaging setter.
No preheating requirement can save energy and time, and the use of low chemistry protects the environment by reducing the sewage disposal.
This product has excellent printability, sharp resolution, and stable quality, therefore, it is very suitable for busy work load of prepress industry.
|
Technical specifications |
|
|
Technical Specifications |
|
|
Plate Type |
No preheating , positive-working, thermal CTP plate |
|
Application |
Commercial, newspaper and packaging print applications
|
|
Aluminum |
Electrochemically grained and anodized aluminum substrate |
|
Gauge |
0.15mm, 0.30mm and 0.40mm standard, with 0.20mm and 0.24mm availability in selected regions
|
|
Coating color |
Light blue |
|
Spectral sensitivity |
780 - 850nm |
|
Exposure energy required |
100 mJ/cm2 - 130 mJ/cm2 (dependent on imager type, configuration and resolution) |
|
Resolution |
1% to 99% @ 400 lpi or 10 micron stochastic (dependent upon capability of imaging device) |
|
Developer |
Kodak Goldstar Premium |
|
Run length |
100,000 impressions unbaked; 1,000,000 plus impressions baked; baking recommended when the use of UV-ink. (dependent upon image resolution, press, press chemical, ink and paper conditions) |
|
Safelight |
Daylight handling |
|
Shelf life |
12 months, under recommended storage conditions |
