CNC Beams Punching Machine

Model:	HC300
Brand:	Tianchen Machine
Origin:	Made In China
Category:	Services / Designing, Processing, Custom Made / Metallic Processing
Label:	-
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Jinan Tianchen Machine Group Co.,Ltd.

Free MemberShan Dong - China

Live Chat:

Last Online:05 Jul, 2022

Product Description

Machine Function and Feature:

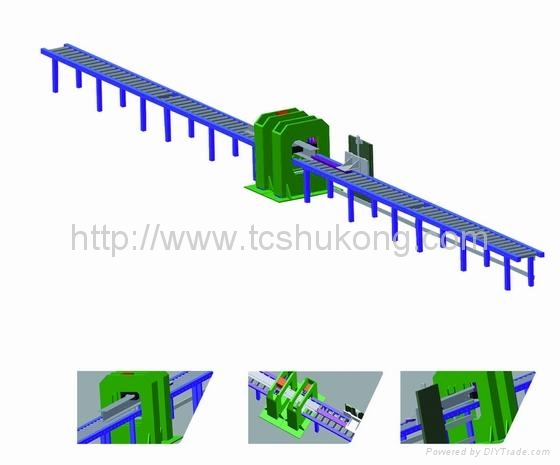

● It consists of flange punching unit, web punching unit, CNC automatic infeeding conveyor, Hydraulic system, Pneumatic system.

● It can fulfill the punching process for flanges and webs of H-beam, the distance from hole to beam end, the distance between holes are controlled by servo motor, automatically positioning of punching hole, CNC positioning is fulfilled by automatic H-beam infeeding device.

● It uses high quality PLC and servo motor, the upper computer is industrial computer IPC control, with friendly interface, and convenient operation, easy to learn.

● The CNC control system has self-diagnose function, automatic warning message for machine troubles, easy to do maintenance.

Main Technical Parameter:

H beam size (㎜)	150×150～300×300
Maximum Length of H beam(㎜)	11000
Minimum distance from the hole to beam end(㎜)	25
Maximum Punching Force（kN）	850
Maximum Punching Diameter(㎜)	φ20
Punching hole die station（numbers）	9
CNC Axis（numbers）	3
Maximum Moving Speed of X axis（m/min）	40
Maximum Moving Speed of Y axis（m/min）	10
Total Motor Power（kW）	30
Overall Size（㎜）	24000×1700×1900
Machine’s total weight（kg）	20000
