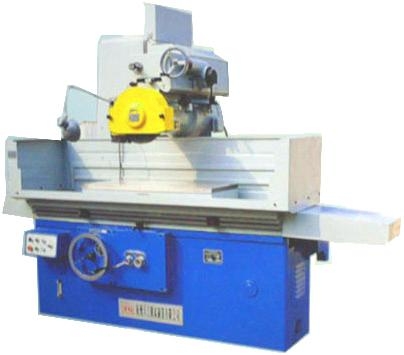

Surface Grinding Machine with Horizontal Spindle & Rectangular Table
Product Description
Model M7140Z Specifications:
1. Worktable:
Dimension of Worktable(WxL)mm:400x1000
Maximum Grinding Dimension(MxLxH)/mm:300x1000x400/600
Longitudinal Traverse of Table(Hydraulic)/mm:1100
Speed of Worktable(Stepless) m/min:3-27
Number of T-shape Slot*Width on Worktable:3x18
Load of Worktable/kg:624
2. Grinding Wheel Head:
Distance from the Centre of Grinding Wheel to the Worktable(mm):575/624
Intermittent Cross Feed of Wheel Head per Travel (mm):5-25
Max. Trave of Wheel-Headl:
Vertical Feed/mm(Manual/Hydrautic):400/600
Cross Feed/mm(Manual/Hydrautic):400
Rotate Speed of Grinding Wheel Spindle/rpm:1450
Dial Value of Vertical Feed Hand wheel/mm:0.01
Wheel Head Feed Per Rotation of Hand Wheel/mm:1.00
Grinding wheel size(O.DxWxI.D)/mm:350x40x127
3. Motor Power:
Total Power of Motor/kw:8.99
Motor Power of Grinding Wheel Head/kw:5.5
4. Work Slot:
Parallelism of Work piece Surface to Base level/mm: 300:0.005
Surface Roughness/um:Ra0.63
5. Weight of Machine Tool:
Net Weight/kg:3700/3800
Gross Weight/kg:4200
6. Overall Dimensions(LxWxH)/mm:2500x1673x2045
Case dimension(LxWxH)/mm:2600x1750x2400
Product Image
Img 1
