| Model: | CM250 |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Tools / Woodworking |
| Label: | Combined , woodworking machine , planer thicknesser |
| Price: |
US $1400
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:18 Oct, 2018 |
|
Motors
|
1400W+1500W+2200W, 230V/50Hz or 400V
|
|
Planer & Thicknesser
|
|
|
Planer table size
|
1085x253mm
|
|
Thicknesser table size
|
248x600mm
|
|
Blade speed
|
4000rpm
|
|
Blade size
|
250x30x3mm
|
|
Max cut depth of planer
|
5mm
|
|
Max cut depth of thicknesser
|
2.5mm
|
|
Thicknesser capacity
|
195mm
|
|
Thicknesser feed speed
|
8m/min
|
|
|
|
|
Sliding carriage
|
|
|
Sliding table size
|
400x250mm
|
|
Traveling distance
|
970mm
|
|
|
|
|

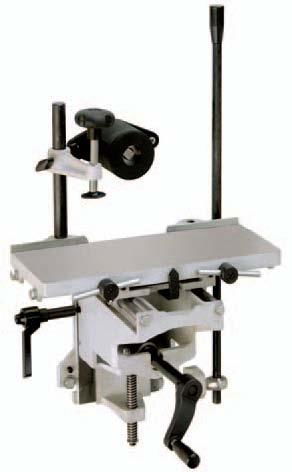

Mortiser(optional)
|
|
|
Chuck
|
16mm
|
|
Table size
|
370x150mm
|
|
Vertical stroke
|
0-80mm
|
|
Lateral stroke
|
0-140mm
|
|
Net weight
|
25kg
|
|
Bench Saw
|
|
|
Table size
|
980x472mm
|
|
Sliding table size
|
400x250mm
|
|
Blade diameter
|
Φ254mm
|
|
Blade speed
|
4750rpm
|
|
Cutting capacity
|
80mm/90°;60mm/45°
|
|
|
|
|
Spindle Moulder
|
|
|
Table size
|
940x410mm
|
|
Spindle size
|
Φ30mm
|
|
Spindle travel
|
80mm
|
|
Max tooling diameter
|
140mm
|
|
Spindle speed
|
4000/6000/8000rpm
|
|
Package
|
|
|
Packing size
|
1300x1170x970mm
|
|
Net weight
|
320kg
|
|
Qty/20' ctnr
|
16pcs
|
