Product Description
| PARTS |
DESCRIPTION |
COLOUR |
| FRAME |
STEEL,16", T/T:48 (CURVE), S/T:THICKNESS 1.2MM, D/T:48*1.2MM(OVAL),REAR STAY TAPPER ,H/T:1.8CM*120mm, W/STANDAFD SEAT CLAMP , W/ KICKSTAND PLATE & BRIDGE ,W/O CHAINCOVER BRACKET , W/O PIVOTS |
AS CUSTOMER'S DEMAND |
| FORK |
16" STEEL DOWM HILL SUAPENSION FORK DOUBLE CROWN STEERER TUBE 155MM, 1-1/4" BLADE AS THE PIC 2 |
STEERER CP AND THE BLADE PAINTING |
| REAR SHOCK |
L:2500 W:40 MATERIAL:STEEL AND ALLOY |
C.P. |
| HEAD PARTS |
THREADED TYPE STEEL |
ED |
| B.B. PARTS |
FOR O.P.C |
ED |
| CHAINWHEEL |
STEEL 32T FOR O.P.C 2.0MM |
ED |
| CRANK |
4" O.P.C COLD FORGED SQUARE HOLE CRANK ARM 127MM |
ED |
| CHAIN |
1/2"x1/8" *72 |
BROWN |
| BRAKE |
F/R:STEEL CALIPER BRAKE SHOE 50MM |
ED |
| BRAKE LEVER |
L/R, HALF ALLOY BRAKE LEVER 2.5 FINGER W/PVC BRACKET |
| BRAKE CABLE |
F/R:550MM/650MM WBK PVC CASING |
BLACK |
| HANDLEBAR |
STEEL BMX W:500mm 1.2MMT |
| STEM |
DOUBLESTEM STEEL 22.2mm EXT:70MM 1.2T |
ED |
| GRIPS |
FOR BMX MUSHROOM , PVCx85mm |
BLACK |
| SADDLE |
SOFT PADDED W/COLOR SIDES W/BK RAIL & CLAMP |
| SEAT PILLAR |
STEEL ￠25.4*￠24.0 150MM W/SAFETY MARKS |
ED |
| PEDAL |
MONOBLOCK PLASTIC W/REF. W/BALL BEARING |
BLACK |
| BELL |
BK RESIN BELL |
BK |
| RIMS |
Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap Bitmap
| ALLOY DOUBLE WALL RIM, 16"x28HOLES |
|
| FRONT HUB |
STEEL,OVERSIZE 9/16"x14Gx28H NUT TYPE |
ED |
| REAR HUB |
STEEL,OVERSIZE 9/16"x14Gx28H NUT TYPE |
ED |
| SPOKES |
STEEL SPOKE 45# 150MM U.C.P W/STEEL NIPPLES |
U.C.P. |
| TIRE/TUBES |
16"x1.95" ALL BLACK & A/V BUTYL TUBES RUBBER CONTENT 50% |
ALL BLACK |
| FREEWHEEL |
16T |
| REFLECTOR |
2PCS/SET NORMAL TYPE F/WHITE R/RED |
| MUDGUARDS |
PVC F/280MM R/400MM |
BLACK |
| SEAT CLAMP |
STEEL STANDARD NUT/BOLT 40MM W/QUICK RELEASE |
U.C.P. |
| DECAL |
AS CUSTOMER'S DEMAND |
| PACKAGE |
SKD 45% 1SET/CARTON |

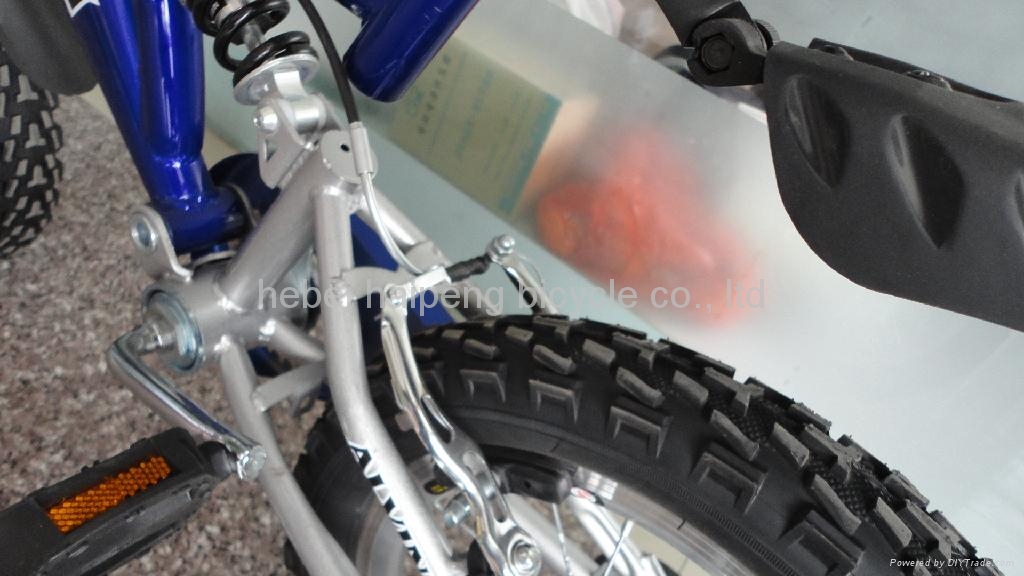

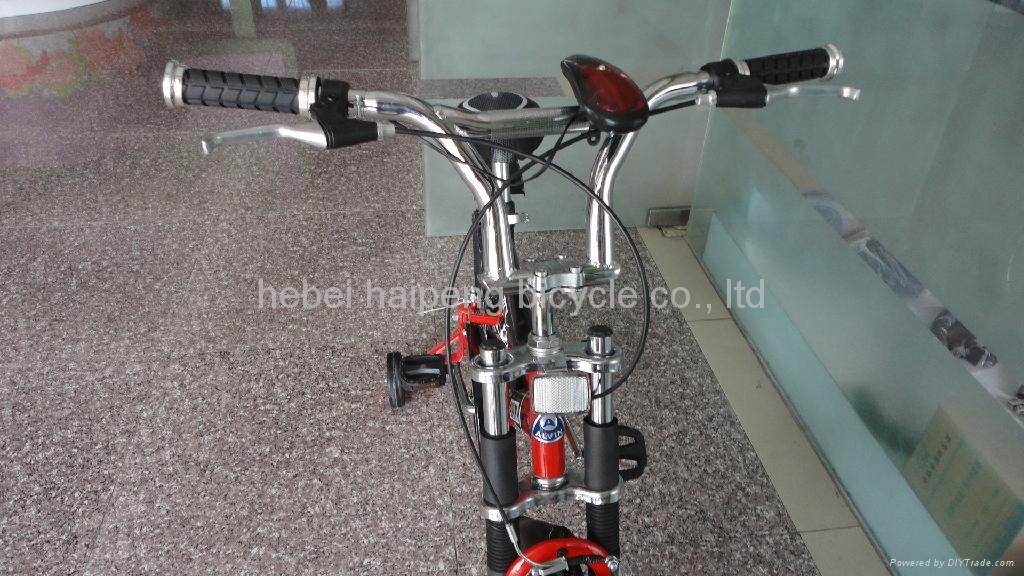

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
