Simple CNC Punching Line for Angle Steel

Model:AP16
Brand:Tianchen CNC
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:angle punch machine , punching machine , cnc angle machine
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Jinan Tianchen Machine Group Co.,Ltd.

Free MemberShan Dong - China
Live Chat:Last Online:05 Jul, 2022

Product Description

Product Description

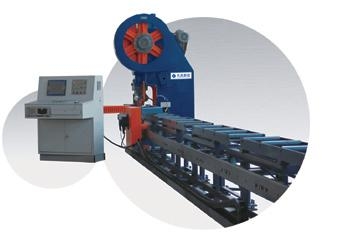

It is used for punching holes for angle bars, it consists of one punch device, infeeding conveyor, outfeeding conveyor and control panel. The punch device is a fixed presser with 800Kn.
Equipment Features:
1)There are two sets of punch dies, which can punch holes with different diameters.
2)The programming is easy and simple, just need to input the workpiece size, hole diameter, back mark value and finished quantity wanted, Or the programming data created from sample yardage software can also be directly used
3)With PLC and servo motor the machine can get high efficiency and stable work accuracy.
Main Technical Specifications:
Model
AP16
Angle size(mm)
40x40x3~125x125x12
Maximum Punching Diameter(mm)
Ø25.5
Punching hole size types
2
Punching back mark(mm)
≥40~63
20
≥70~110
32
≥110~125
42
Margin distance between hole and angle side(mm)
25
Servo motor power (Kw)
X-axis (side stop locator)
2
Y-axis (change back mark value)
1
Maximum stroke of side stop locator(m)
8~10
Positioning speed of side stop locator (m/min)
30
Work piece precision
Comply with national standard GB/T2694-2003
Overall size(mm)(L x W x H)
24500 x 5000 x 3500
