Touch Monitor

Model:NT-2200
Brand:Netoptouch
Origin:Made In China
Category:Consumer Electronics & Lighting / Commerce & Finance Electronics / Finance Electronics
Label:Touch Monitor , Touch Screen Monitor , Touch-Monitor
Price: US $311 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

Shenzhen Netoptouch Technology CO.,Ltd

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:26 May, 2018

Product Description

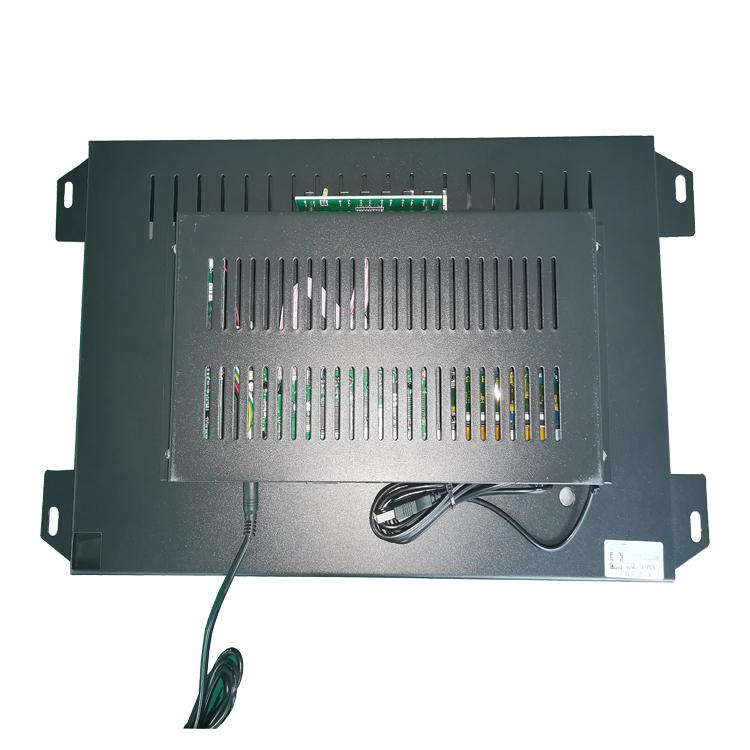

22'' Resistive desktop touchscreen Monitor

 Attention: All of the TFT LCD screen we use are 100% new Grade A+ screen(The best grade in TFT LCD monitor field), please kindly note this.

 Overview:

1. 22'' 100% new Grade A+ TFT LCD monitor

2. 22'' Infrared touch panel

3. Related cables

4. Wooden case for exporting

 Touch Panel:

Name

Confirguration

       Parameter



Notes



Touch Panel



Touch screen





1 Anti explosion, Durable

2 Resolution: 4096*4096

3 Deviation of Error: ±<1.0%

4 Surface Hardness Mohs' hardness rating of 7

5,Lifetime: >50 000 000 times Single point

6.Operate: win9x/ win2000/XP,etc





LCD panel

Panel size: 22 "TFT-LCD

Display area (mm) / model: 476 (W) x 298 (H) / again

The maximum resolution: 1,680 x 1050

Display color:16.7 M

Pixel Pitch (mm): 0.282 (H) x 0.282 (V),

Visual Angle: H178 º V178 º

Brightness: 500cd /m2

Contrast: 1000:1

Response time: 8ms

Life (hrs): 60,000

Touch panel

Size: Five line resistive touch

Film type: Thin film/fog film (default)

Transmittance: thin film ≥83%/ fog film≥ 78%

Hardness: 3H

Click mode: single point

Response time: 10ms

Output resolution: 4096 x 4096

Life: ≥ 1,000 million times per single click

Input and output

Composite video input: 2 BNC

Y, Pb,Pr/Y,Cb,Cr input: 1

S-video-Y/C input:  no

D-15 pin RGB input: 1

HDMI: 1

Composite video output: 1.

AV/YUV video input: 1

PC audio input: 1

USB/serial/PS2 input :(1) only for touch-screen

Videocolor system PAL /NTSC/ SECAM

OSD displaylanguages (optional) Chinese/English (optional)

Input voltage RateAC 100 ~ 50/60HZ 240v

Maximum power consumption: ≤55W

Standby power consumption:≤ 3W

Appearance

Exterior material: cold steel (SPCC)/aluminum panel /customization

Exterior color: white/black/customization

Shape dimension: 496.7*323.1*66 (reference)

Installation: wall hung (default) / base

Working Environment

Work environment temperature/humidity: 0 ° ~ 50 ° c / 20% ~ 80%

Storage temperature/humidity: - 10 ° ~ 60 ° c / 5 ~ 95%

Accessories: The product manual, certificate of remote control, data 3.0 M, power 1.8 M

Test process

Before we send the monitor to you, in order to make sure the kiosk run well after you get it, we will test to run it  at least than 24 hours for each kiosk.

Packing

There are 4 layers total for kiosk, the first one is antistatic film, the 2nd is foam, the 3rd is carton box, and last one is wooden case for exporting.

 Delivery method:

1. To most of the countries, if you are not so emergency, we suggest you choose ocean ship. The cost will be best.

2. If you are emergency, you can choose Express or airfreight. For express, there are DHL, Fedex, UPS, SAL and EMS to choose. Among of them, SAL and EMS will be a little cheaper than others. If by air fly, you need pick the goods up from the airport.

3. For Ocean ship, please kindly provide the nearest port to your city, so we can get a detail shipping cost for you

How to Pay: we accept TT, Western Union, Escrow, etc.

Attention:

a.To Saudi Arabia and UAE, CO and SASO is necessary.

b.To Africa countries, there are few ships.

c. To Australia, Newzealand, you must get fumigation certificate to clearance.

To get more information, warm welcome to contact us online or send us inquiry.


Price Terms:EXW price
Payment Terms:100%T/T advanced
Packing:T/T, Paypal, WestenUnion, Escrow
Lead Time:Usually 3 working days after deposit received
Standards Certificate:CE&FCC&RoHS
