Typical application:

1, 2, 3, rinse anodized, electroplating

4, 5, 6 cleaning sludge treatment and painted

7 and 8, irrigation-leaching-desalting phosphate strip 9, 10, conductivity mixing

Design features

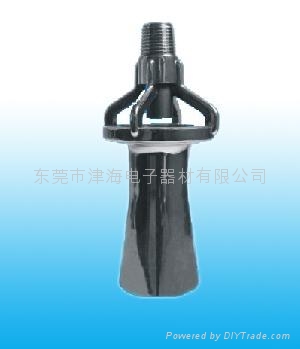

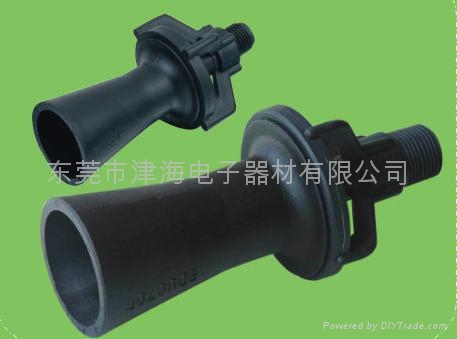

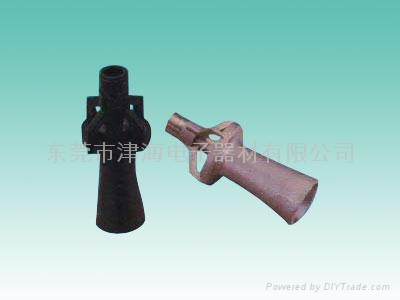

H mixed flow pump can make small nozzle to improve the circulation flow rate, and the ratio of 1 to prevent precipitation, mixing solution.

H Berboulli nozzle is mixed flow according to the principle of gravity, adopting rational jet of geometric parameter design of curved surface, it and pump and pipeline together constitute a complete liquid injection mixing system.

When working in the pump pressure, the liquid into mixed flow under high-speed motion, and achieve the nozzle flow momentum exchange, through low-pressure area around the mouth guide formed due to the pressure difference, and fluid to attract liquid momentum, high-speed work jet and attracted by 4 fluid flow together for injection into mixed diffusion throughput, achieve solution without air mixing.

Material properties

H mixed flow nozzle using high-performance materials - fiber reinforced polypropylene die-casting, excellent corrosion resistance to chemicals and aging properties, heat up to 120 degrees.

characteristics

S realize solution without air mixing, reduce solution oxidative decomposition.

S aggrandizement turbulent campaign to improve solution cycle solution mixed results.

S promote solution evenness and improve the quality of surface treatment.
