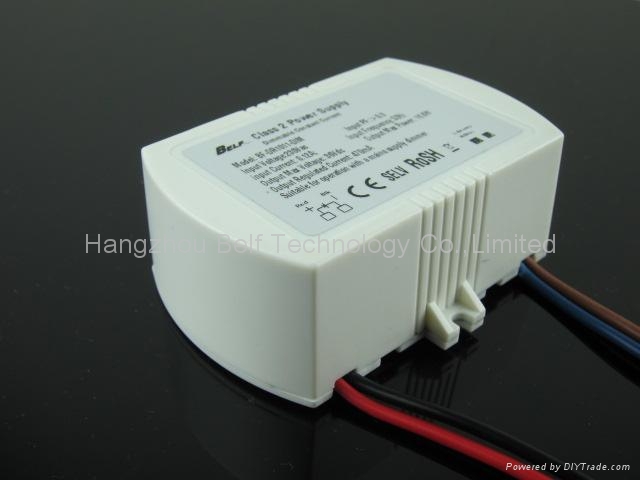

| Model: | BF-DR1011-DIM |
|---|---|
| Brand: | BELF |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / Lighting Fixtures |
| Label: | dimmable led driver , triac dimmable , led driver |
| Price: |
-
|
| Min. Order: | 100 pc |
| Last Online:22 Aug, 2014 |
Features:*Input Range From 240Vac ± 6% *PFC to reduce power consumption. *Compact,lightweight in plastic case. *Designed for indoor application. *Waterproof packaging: IP65 for dry and wet location. *Tc Point measured, Max case temperature: 70 °C *Protections: Short-Circuit / Over Load / Over Heat and Auto-recovery Mode. *Operates with Industry Standard Dimmers, Triac & Electronic Low Voltage Dimmers*CE,RoHS,TUV Compliant. IP65
| Price Terms: | FOB Ningbo/Shanghai |
|---|---|
| Payment Terms: | TT/D/P/Western Union |
| Lead Time: | 5~10 working days after the receipt of payment |
| Specifications: | Input Voltage range: 240VAC AC Current:0.12A ＠230VAC Total Harmonic Distotion:Less than 20% at full load Max Inrush Current:<20A Leakage Current:<1 mA / 120Vac Available Dimmers: *Standard Light Switches *Triac based incandescent Dimmers(Standard Phase-Leading edge) *Electronic low voltage Dimmers (Reverse Phase- trailing edge) Output Voltage Range: 10-16 Vdc Ripple & Noise (max.) :2.1Vp-p Line regulation: ± 3% Load regulation: ± 5% Rated Current Range (mA): 1050mA ± 6% Rated Power (W):16.8W Max Efficiency (Typ): 80% Hold up time:Half cycle minimum at 120VAC and 80% of rated. Operating Temperature:-20°C~+'70°C full load Operating Humidity:20% ~ 95% RH non-condensing. Storage Temp. / Humidity: -20 ~ +80°C / 10% ~ 95% RH Ambient Temp. :25°C at 120Vac Vibration Frequency: 5 to 50 HZ MTBF:>100,000 Hours at full load and 25°C ambient conditions(MIL-HDBK-217F) Safety Standards:TUV / CE-EN61347 / EN55015 |
| Advantages: | Features: *Input Range From 240Vac ± 6% *PFC to reduce power consumption. *Compact,lightweight in plastic case. *Designed for indoor application. *Waterproof packaging: IP65 for dry and wet location. *Tc Point measured, Max case temperature: 70 °C *Protections: Short-Circuit / Over Load / Over Heat and Auto-recovery Mode. *Operates with Industry Standard Dimmers, Triac & Electronic Low Voltage Dimmers *CE,RoHS,TUV Compliant. IP65 |
