Woodworking Four-Heads Hinge Boring Machine,SH73034
Product Description
| Four-heads Hinge boring machine |
| Model |
SH73034 |
| Maximum diameter of holes |
35mm |
| Depth of drilled holes |
0-65mm |
| The total number of spindles |
12pcs |
| Maximum diameter of pieces to be drilled |
2500×650×80mm |
| Rotation speed of spindle |
2840 r/min |
| Total power of motor |
1.1kw×4 |
| Suitable voltage |
~380v |
| Pressure of compressed air |
0.5-0.6Mpa |
| Gas consumption drilling ten |
17L/min |
| Panels per minute approximately |
| Overall size |
2680×890×1670mm |
| Weight of the whole machine |
990kg |
| Max.Distance of the two vertical head |
2200mm |
| Min.Ditance of the two vertical head |
280mm |

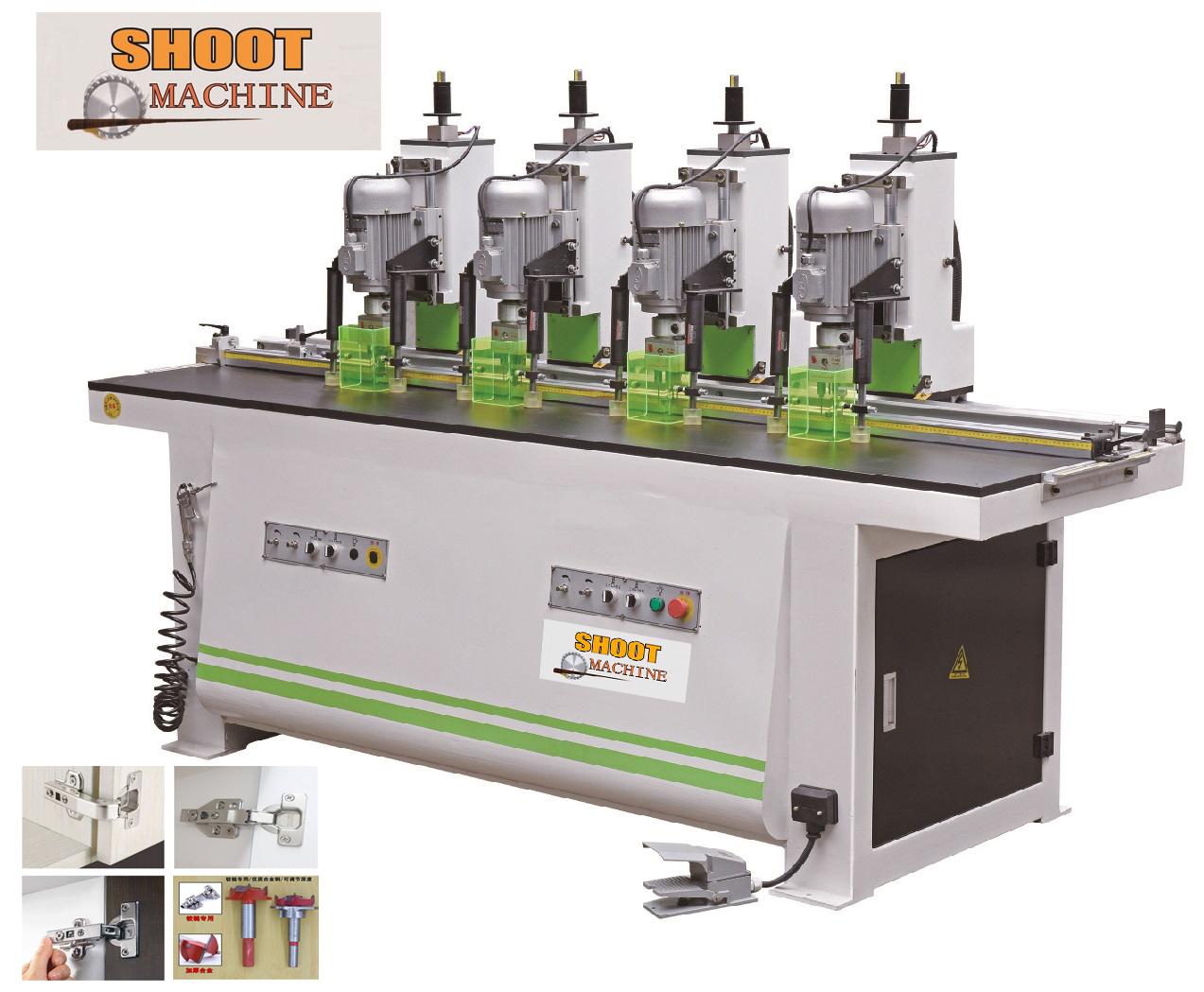

Product Image
