TNC Male Connector

Model:FT-Connector148
Brand:Futai
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:TNC MALE CONNECTOR , RF COAXIAL CONNECTOR , ANTENNA CONNECTOR
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Futai HK Co., Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:13 May, 2020

Product Description

The series TNC connectors with screw-soupling mechanism,have characteris of reliable connect and vibration-proof,for the connect RF coaxial-cables in electronic equipments and instruments, and can be inter-hangeable with the same-type connectors of abroad,Characteristic impedance 50Ω.
We can produce the connector according to your drawing or requirement.

Detailed Product Description


  TNC Male RF Coaxial Connector for RG58u Cable
Type:TNC-JY3-148
Place of Origin: Guangdong,China
Brand Name:Futai



TNC Male RF Coaxial Connector for RG58u Cable

Specifications:



Model

FT-Connector148

Major Technical Characteristics

Type

TNC-JY3-148

Impedance

50Ω

Frequency Range

DC~11GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB

Voltage Standing Wave Ratio

Straight    ≤1.22/3GHz

Right angle  ≤1.30/3GHz

Durability(mating)

≥500(cycles)

Cable

RG58U

Material & Plating

Body

Brass

Nickel plated

Pin contact

Brass

Gold or silver plated

Socket contact

Beryllium-copper Customized)

Gold or silver plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel plated

O-ring sealing

6146 silicone rubber

















Our Company Other Products:

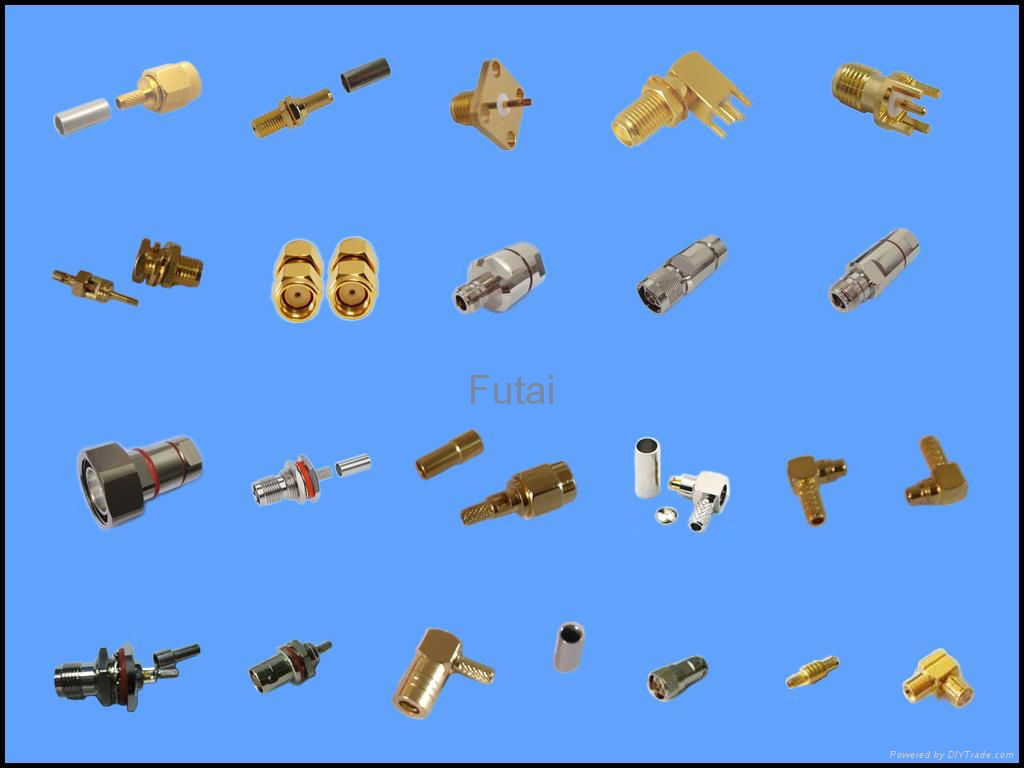

Futai HK Co.,Ltdis specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector
are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

We are welcoming you to ask sample for testing ,welcome to our company website  to do business.
http://www.futai8.com  http://www.gpsgf.com  http://futaihk.en.alibaba.com

Payment Terms:TT/Western Union
