Drilling Machine SHZ5032C/1 1
  • Drilling Machine SHZ5032C/1 1

Drilling Machine SHZ5032C/1

Model:SHZ5032C/1
Brand:SHOOT
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:Drilling Machine , metal machine , press machine
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Yantai Shoot Woodworking Machine Co.,Ltd

Biz MemberShan Dong - China
Live Chat:
Last Online:09 Apr, 2024

View all products. (841)

Product Description

Drilling Machine 　
Model  SHZ5032C/1
Max.drilling capacity 32mm
Spindle taper M.T.3 or R8
Spindle travel 130mm
Step of speed 6
Range of spindle speed        50Hz 80-1250 r.p.m
                                                  60Hz   95-1500 r.p.m
Step of spindle auto-feeding 6
Range of spindle auto-feeding amount 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal) 360°　　　　　　　　　
Max.travel of worktable bracket 600mm
Worktable size 730×210mm　　　
Forward and afterward travel of worktable 205mm
Left anf right travle of worktable 500mm
Vertical travel of worktable 570mm
Size of stand worktable of avaliability 417×416mm　　　
Motor Power 0.75KW(1HP)
Voltage/Frequency As customer's requirement
Motor speed 1400 r.p.m
Cooling pump power 0.04KW
Net weight/Gross weight 437kg/500kg
Packing size 1850×750×1000mm
Loading amount 18pcs/20＇container




Drilling Machine 　
Model  SHZ5040C/1
Max.drilling capacity 40mm
Spindle taper M.T.4
Spindle travel 130mm
Step of speed 6
Range of spindle speed        50Hz 80-1250 r.p.m
                                                  60Hz   95-1500 r.p.m
Step of spindle auto-feeding 6
Range of spindle auto-feeding amount 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal) 360°　　　　　　　　　
Max.travel of worktable bracket 600mm
Worktable size 730×210mm　　　
Forward and afterward travel of worktable 205mm
Left anf right travle of worktable 500mm
Vertical travel of worktable 570mm
Size of stand worktable of avaliability 417×416mm　　　
Motor Power 1.1KW(1.5HP)
Voltage/Frequency As customer's requirement
Motor speed 1400 r.p.m
Cooling pump power 0.04KW
Net weight/Gross weight 442kg/502kg
Packing size 1850×750×1000mm
Loading amount 18pcs/20＇container





Drilling Machine 　
Model  SHZ5045C/1
Max.drilling capacity 45mm
Spindle taper M.T.4
Spindle travel 130mm
Step of speed 6
Range of spindle speed       50Hz 80-1250 r.p.m
                                         60Hz   95-1500 r.p.m
Step of spindle auto-feeding 6
Range of spindle auto-feeding amount 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal)          360°
Max.travel of worktable bracket 600mm
Worktable size 730×210mm　　　
Forward and afterward travel of worktable 205mm
Left anf right travle of worktable 500mm
Vertical travel of worktable 570mm
Size of stand worktable of avaliability 417×416mm　　　
Motor Power 1.5KW(2HP)
Voltage/Frequency As customer's requirement
Motor speed 1400 r.p.m
Cooling pump power 0.04KW
Net weight/Gross weight 442kg/505kg
Packing size 1850×750×1000mm
Loading amount 18pcs/20＇container

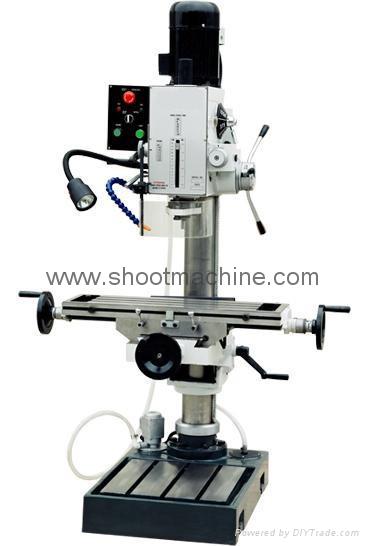

Product Image

Drilling Machine SHZ5032C/1 1
Img 1
