Milling and Drilling Machine, SHZAY7045FG, SHZAY7040FG, SHZAY7032FG, SHZAY7025FG
Product Description
| Milling & drilling Machine |
|
| Model |
SHZAY7045FG |
| Max Face mill capacity |
45mm |
| Max End mill capacity |
80mm |
| End milling capacity |
32mm |
| Max.distance from spindle nose to table |
450mm |
| Min.distance from spindle axis to column |
260mm |
| Spindle travel |
130mm |
| Spindle taper |
M.T.4 or R8 |
| Step of spindle speed |
6 |
| Range of spindle speed 50Hz |
80-1250 r.p.m |
| 60Hz |
95-1500 r.p.m |
| Swivel angleof headstock(perpendicularly) |
90° |
| Table size |
800×240mm |
| Forward and backward travel of table |
175mm |
| Left and right travel of table |
500mm |
| Motor Power |
1.5KW(2HP) |
| Voltage/frequency |
As customer's requirement |
| Net weight/gross weight |
325kg/375kg |
| Packing size |
770×880×1160mm |
| Loading amount |
36pcs/20＇container |
| Milling & drilling Machine |
|
| Model |
SHZAY7040FG |
| Max Face mill capacity |
40mm |
| Max End mill capacity |
80mm |
| End milling capacity |
32mm |
| Max.distance from spindle nose to table |
450mm |
| Min.distance from spindle axis to column |
260mm |
| Spindle travel |
130mm |
| Spindle taper |
M.T.4 or R8 |
| Step of spindle speed |
6 |
| Range of spindle speed 50Hz |
80-1250 r.p.m |
| 60Hz |
95-1500 r.p.m |
| Swivel angleof headstock(perpendicularly) |
90° |
| Table size |
800×240mm |
| Forward and backward travel of table |
175mm |
| Left and right travel of table |
500mm |
| Motor Power |
1.1KW(1.5HP) |
| Voltage/frequency |
As customer's requirement |
| Net weight/gross weight |
323kg/373kg |
| Packing size |
770×880×1160mm |
| Loading amount |
36pcs/20＇container |
| Milling & drilling Machine |
|
| Model |
SHZAY7032FG |
| Max Face mill capacity |
32mm |
| Max End mill capacity |
63mm |
| End milling capacity |
20mm |
| Max.distance from spindle nose to table |
450mm |
| Min.distance from spindle axis to column |
260mm |
| Spindle travel |
130mm |
| Spindle taper |
M.T.3 or R8 |
| Step of spindle speed |
6 |
| Range of spindle speed 50Hz |
80-1250 r.p.m |
| 60Hz |
95-1500 r.p.m |
| Swivel angleof headstock(perpendicularly) |
90° |
| Table size |
800×240mm |
| Forward and backward travel of table |
175mm |
| Left and right travel of table |
500mm |
| Motor Power |
0.75KW(1HP) |
| Voltage/frequency |
As customer's requirement |
| Net weight/gross weight |
320kg/370kg |
| Packing size |
770×880×1160mm |
| Loading amount |
36pcs/20＇container |
| Milling & drilling Machine |
|
| Model |
SHZAY7025FG |
| Max Face mill capacity |
25mm |
| Max End mill capacity |
63mm |
| End milling capacity |
20mm |
| Max.distance from spindle nose to table |
445mm |
| Min.distance from spindle axis to column |
203mm |
| Spindle travel |
85mm |
| Spindle taper |
M.T.3 or R8 |
| Step of spindle speed |
6 |
| Range of spindle speed 50Hz |
95-1420 r.p.m |
| 60Hz |
115-1700 r.p.m |
| Swivel angleof headstock(perpendicularly) |
90° |
| Table size |
520×160mm |
| Forward and backward travel of table |
140mm |
| Left and right travel of table |
290mm |
| Motor Power |
0.37KW |
| Voltage/frequency |
As customer's requirement |
| Net weight/gross weight |
180kg/240kg |
| Packing size |
680×750×1000mm |
| Loading amount |
48pcs/20＇container |

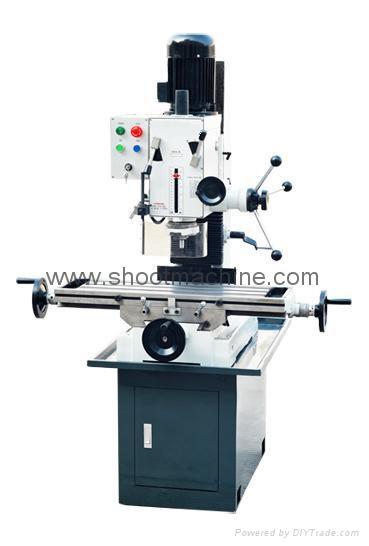

Product Image
Img 1
