60 Series 4/5/6//8" Nylon Forging Caster
Wheel Diameter：100mm / 126mm / 151mm / 196mm
Wheel Width：51mm (2")
Wheel Type：Nylon 6
Moving Loading：4"-800 KG / 5"-800 KG / 6"-850 KG / 8"-850 KG
Type：Rigid、Swivel Plate、Plate with Brake
Brake Type：Side Brake
Bearing：6204ZZ (Hole：20mm)
Features：
1. heavy duty loading
2. The frame of the caster is heat-treated.
※ Nylon 6 ：non-toxic、grease and iron filings resistant、inelastic
|
Details |
||
|

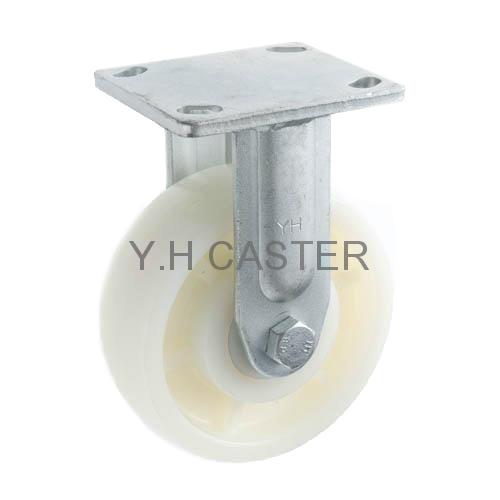

Rigid |
Plate Size |
115 x 100mm (thk. ：8mm) |
|
Bolt Hole Spacing |
76~92 x 66~76mm |
|
|
Total Height |
4"-150mm / 5"-169mm
|
|
|

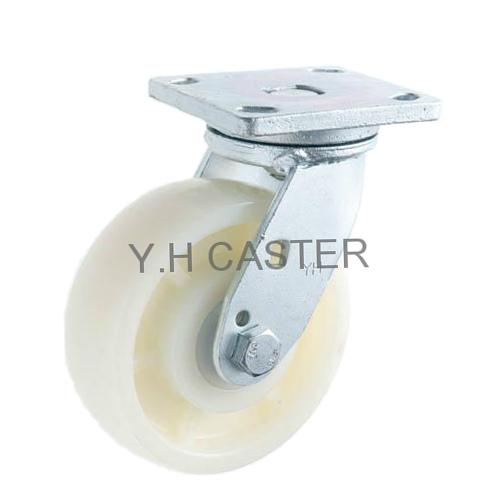

Swivel Plate |
Plate Size |
8 x 115 x 100mm |
|
Bolt Hole Spacing |
76~92 x 66~76mm |
|
|
Total Height |
4"-150mm / 5"-169mm
|
|
Code
|
Item |
Code |
|
4” Nylon Forging Caster (Swivel) |
60-420NBW11-SW |
|
4” Nylon Forging Caster (Swivel Plate with Side Brake) |
60-420NBW11-SB |
|
4” Nylon Forging Caster (Rigid) |
60-420NBW-RG |
|
5” Nylon Forging Caster (Swivel) |
60-520NBW11-SW |
|
5” Nylon Forging Caster (Swivel Plate with Side Brake) |
60-520NBW11-SB |
|
5” Nylon Forging Caster (Rigid) |
60-520NBW-RG |
|
6” Nylon Forging Caster (Swivel) |
60-620NBW11-SW |
|
6” Nylon Forging Caster (Swivel Plate with Side Brake) |
60-620NBW11-SB |
|
6” Nylon Forging Caster (Rigid) |
60-620NBW-RG |
|
8” Nylon Forging Caster (Swivel) |
60-820NBW11-SW |
|
8” Nylon Forging Caster (Swivel Plate with Side Brake) |
60-820NBW11-SB |
