| Model: | HB-280L |
|---|---|
| Brand: | Hengxin |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | UV exposure machine , Exposure machine , Plate making machine |
| Price: |
US $1528
/ pc
|
| Min. Order: | 1 pc |
| Last Online:11 Apr, 2016 |

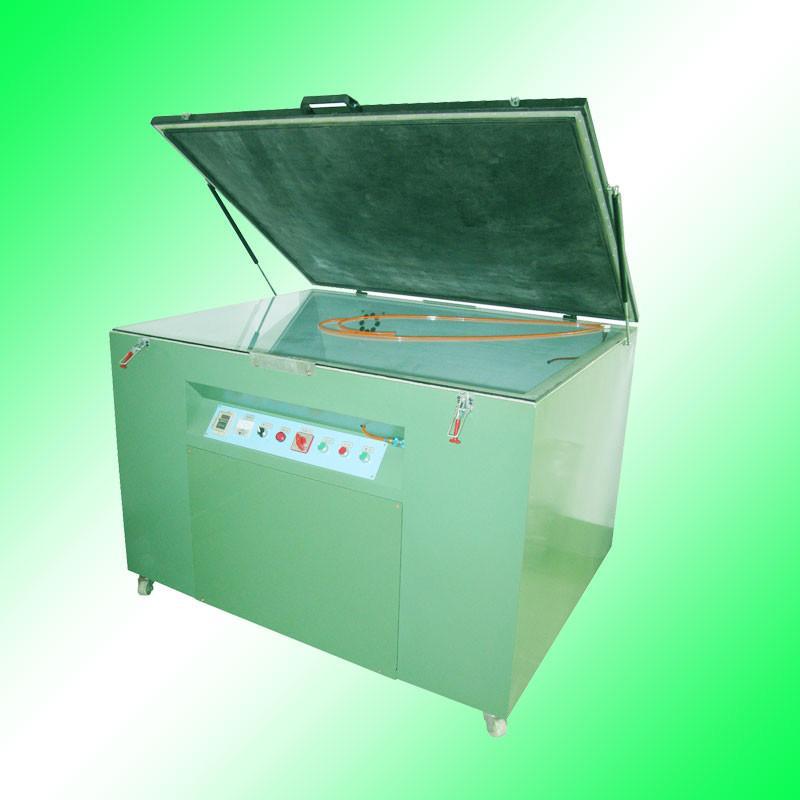

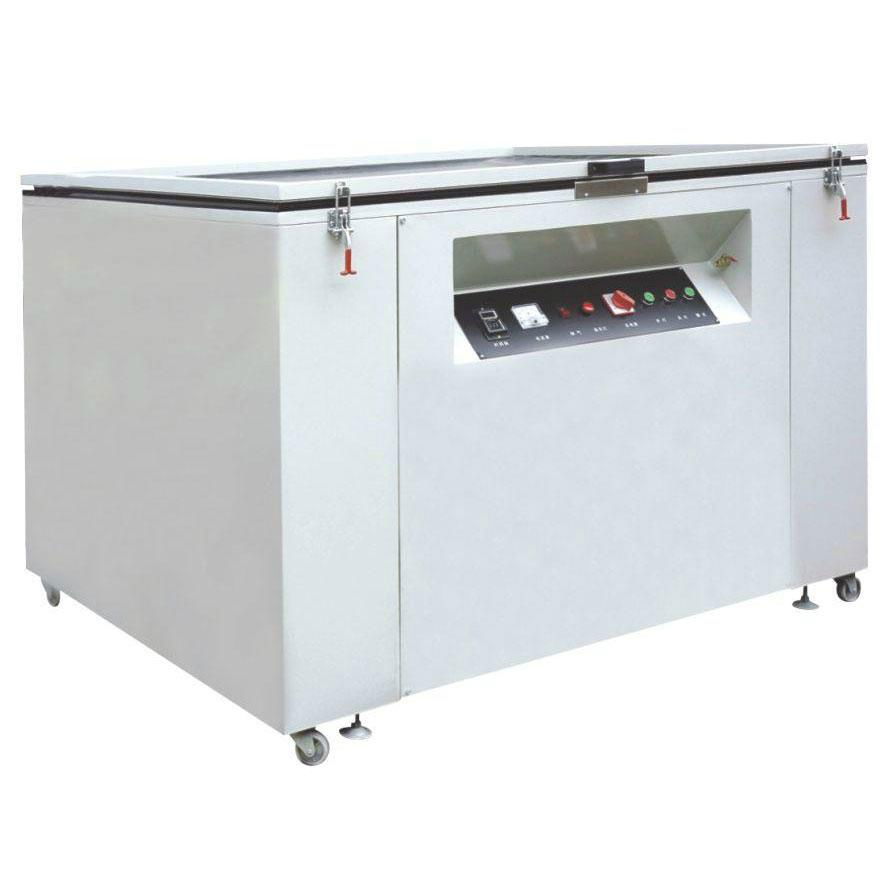

HB-280L UV exposure machine
Parameters:
1). Glass dimensions: 900*1200mm
2). Glass thickness: 10mm
3). Lamp wattage: 2000W
4). Max. frame dimensions: 800*1100mm
5). Exposure area: 850*1150mm
6). Vacuum degree: 0.05mpa
7). Wattage: 80w/cm
8). Lamp distance: 750mm
9). Packing size: 1320*1030*1020mm
10). Gross weight: 120Kg
Advantages:
1). Choose high quality UV lamp, keep long life
2). Reflect cover made by resist aging materials
3). Whole jointing with zinco plate, both portability and firmly
4). Exposal time auto adjustment and controlling
5). High vacuum degree, easy to transfer and copy fine lines
6). Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp
7). High toughness Rubber Layer ensure film closely cover with frame
