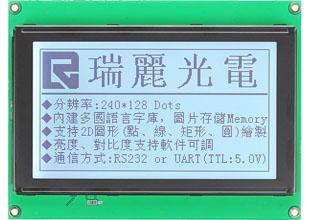

| Model: | RSI240128****- |
|---|---|
| Brand: | RUILI |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | serial lcd , serial lcd module , rs232 lcd |
| Price: |
US $50
/ pc
|
| Min. Order: | 20 pc |
| Live Chat: |  | Last Online:06 Mar, 2018 |
| ◆Feature◆ | ||
| Display Type: | STN(YG)/Transflective/Positive | |
| Viewing Area: | 114.0mm*64.0mm | |
| Resolution: | 240*128 Dots | |
| Viewing Direction: | 6:00 | |
| FLASH Memory: | Built-In FLASH memory for storing menu screen | |
| 2D drawing: | Support 2D (pixel, line, circle, rectangle) Draw | |
| Font: | Support multi-language font (such as ASCII, Chinese, Japanese, Korean ...) | |
| Brightness: | Support software adjustable | |
| Contrast: | Support software adjustable | |
| Key-scan: | Built-In smart 8x8 key-scan | |
| ID Identifies: | Support ID recognition function,Simultaneous control of multiple products in a bus | |
| Operating temperature: | -20~70℃ | |
| Storage Temperature: | -30~80℃ | |
| Operating Voltage: | 5.0V | |
| Communication Interface: | RS232 or UART(TTL:5.0V) | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Font |
English /European |
|
Description |
LCD Display |
|
Diagonal Size |
3.5 inch (8.9 cm) |
|
Display Mode |
Normally White |
|
Family |
RTC035A |
|
Interface |
MCU 8080/6800 (8 bits/16 bits) |
|
Operating Temperature Range |
-20°C to 70°C |
|
Outline Dimensions |
92.9 x 63.9 x 8.5 mm |
|
Pixel Format |
320 x 240 |
|
Response Time |
160 ms |
|
RoHS |
Yes |
|
Status |
New |
|
StorageTemperature Range |
-30°C to 80°C |
|
Touch Panel |
With |
|
BTE with 2D Function |
With |
|
Geometric Speed-up Engine |
With |
|
Operation Voltage |
3.3V |
| Payment Terms: | TT |
|---|---|
