| Model: | ESS-202D |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Radio TV Equipment |
| Label: | Encoder , MPEG4 , 8 in 1 |
| Price: |
US $3600
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Dec, 2012 |

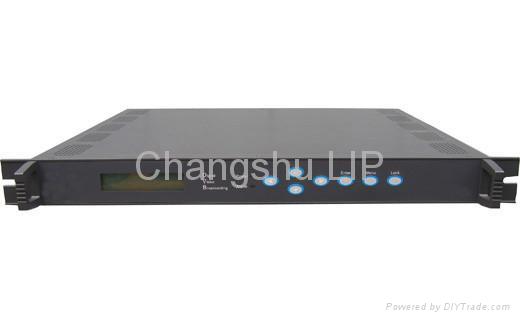

ESS-202D MPEG4 is a multifunction and powerful Digital Video and Audio platform. Due to server like stability, ESS-202D can perform good play on many video service head end.
ESS-202D MPEG4 integrates 8 channel encoder and TS multiplexer in a compact 1RU form, ideal for head end deployment or head end enlargement. Lower bit rates MPEG2/MPEG4 SD encoding, support up to 28 channel program multiplexing makes you cast more programs on the limited bandwidth. Human design, the friendly operating network software makes you control the equipment easily.
Video | Audio | ||
Analog Input | 8 Channels | Analog Input | 8 Channels |
Video Signal | CVBS | Audio Channel | R/L |
Video System | PAL/NTSC | Sampling Rate | 32KHz, 44.1KHz, 48KHz |
Picture Ratio | 4:3 or 16:9 | Connection | BNC(75Ω) |
Connection | BNC (75Ω) | ||
ASI In | ASI Out | ||
Bit Rate | 0~126Mbps | Bit Rate | 1~126Mbps |
Packet Length | 188 or 204 Bytes | Packet Length | 188 Bytes |
Connection | BNC(75Ω) | Output Level | 800mVpp |
Connection | BNC(75Ω) | ||
Audio Encoding | Video Compress Encoding | ||
Standards | MPEG-1 Layer-1/ Layer-2 | Standards | MPEG-2 (MP@ML)/MPEG4 (SP, ASP) |
Bit Rate | 32Kbps, 64Kbps, 128Kbps, | Sampling | 4: 2: 0 |
192Kbps, 256Kbps, 384Kbps | Frame Arrange | IPB, IP, IBI, I | |
Movement Predict | Auto frame, scene predict | ||
DC Precision | 8～11bits | ||
Bit Rate | 0 to 15 Mb/s (VBR or CBR) | ||
Horizon Resolution | 720, 704, 640, 544, 528, 480, 352, 176 | ||
Vertical Resolution | 576 512, 480, 288, 240, 144 | ||
Control | Environment and Power | ||
Access | IP network Access | Work Temp | |
Front Panel | LCD and LEDs | Store Temp | |
Access media | 10/100 BASE-T Ethernet | Humidity | 0% to 90% |
Access tool | ZHX DIGI-MAN SYSTEM | Dimension | 1U 4.5cm x |
Connection | RJ45 | Voltage | 110 ~ 250 Vac 50/60 Hz |
Power | 50 W | ||
CATV Local MPEG Encoding
MMDS Broadcast
DVB-T Broadcast
