| Model: | SH30GMYC-SH30P |
|---|---|
| Brand: | SHOOT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Air Compressor |
| Label: | air compressor syste , Screw Air Compresso , Frequency Screw Air |
| Price: |
US $3500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Apr, 2024 |
|
Permanent Magnet Variable Frequency Screw Air Compressor
|
|
| Feature | |
| Chinese host | |
| Zhongchen frequency converter | |
| Taiwan process red copper pipeline | |
| SKF bearings imported from Sweden | |
| French Schneider contactor | |
| Danfoss solenoid valve in Denmark | |
| Power frequency motor | |
| High efficiency frequency converter | |
| Constant voltage can save energy and electricity by about 30% | |
| Model | SH30GMYC |
| Power | 22KW |
| Voltage | 380V/50HZ |
| Exhaust volume | 3.6m³ |
| Pressure | 0.8MPa |
| Diameter | DN32 |
| Startup mode | Permanent magnet frequency converter |
| Size | 1350*850*1040mm |
| Weight | 418KG |
|
Refrigerated Dryer
|
|
| Model | SH30P |
| Air handling capacity | 3.8m³ |
| Working pressure | 0.8mpa |
| Pressure dew point | 2-10℃ |
| Ambient temperature | 2-40℃ |
| Voltage frequency | 220V/50HZ |
| Overall dimensions | 1030*600*1000mm |
|

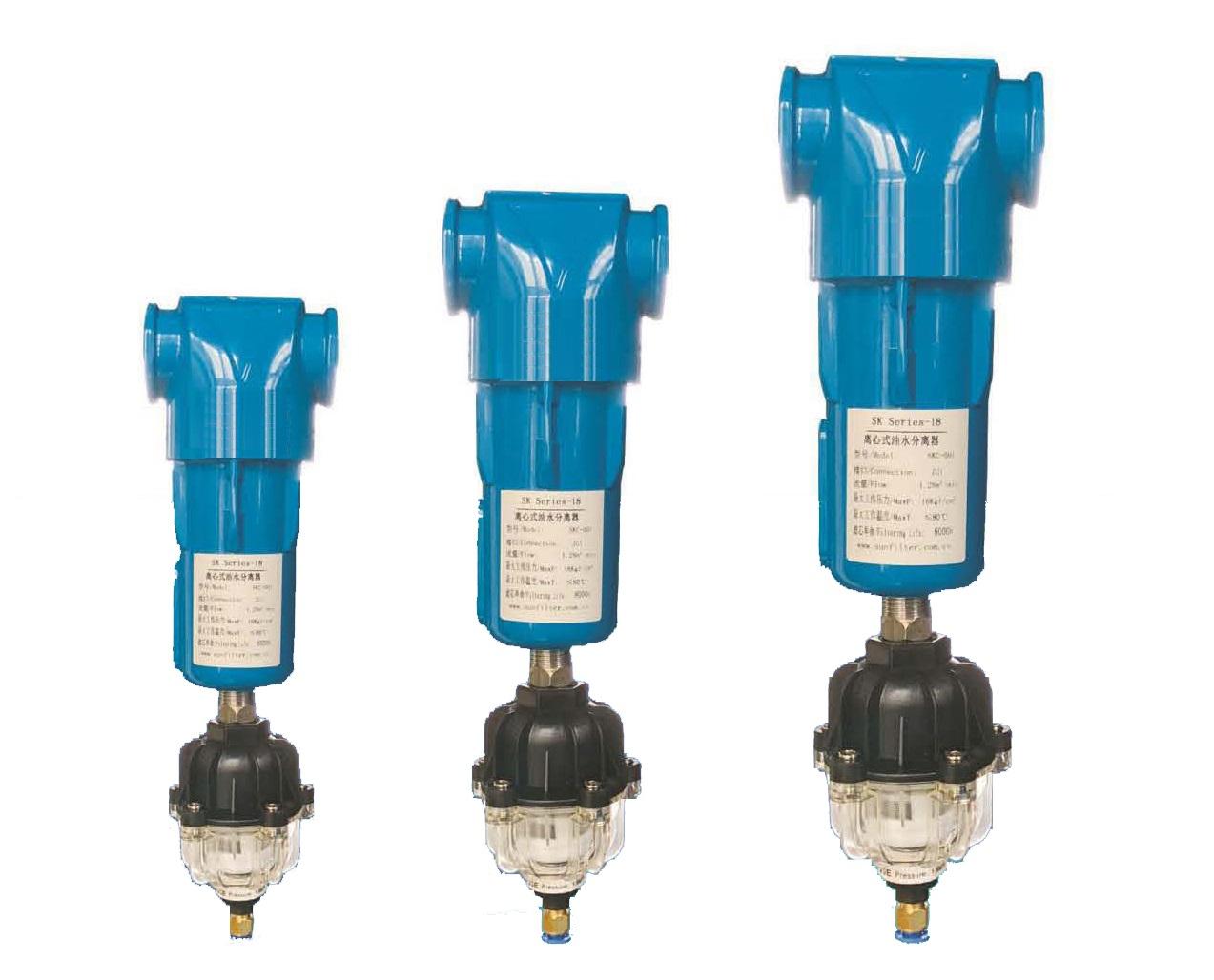

High-efficiency Precision Filter
|
|
| Feature | |
| Inlet filter element | |
| Model | FL-CTA |
| Air handling capacity | 3.8m³ |
|

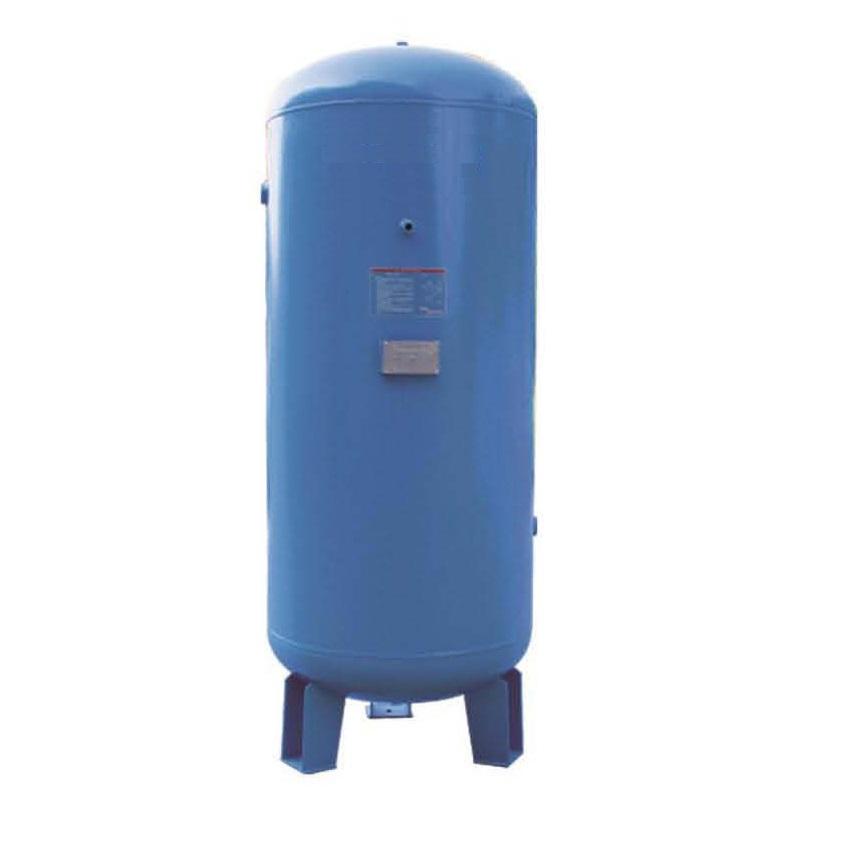

Air Storage Tank
|
|
| Model | C1-0.8 |
| Volume | 1 cubic meter |
| Weight | 220kg |
| Size | 800*2187mm |
| Gas inlet and outlet pipe | DN40 |
| Connector of safety valve | DN25 |
| Cylinder thickness | 4.75mm |
| Surface area | 8.3 ㎡ |
