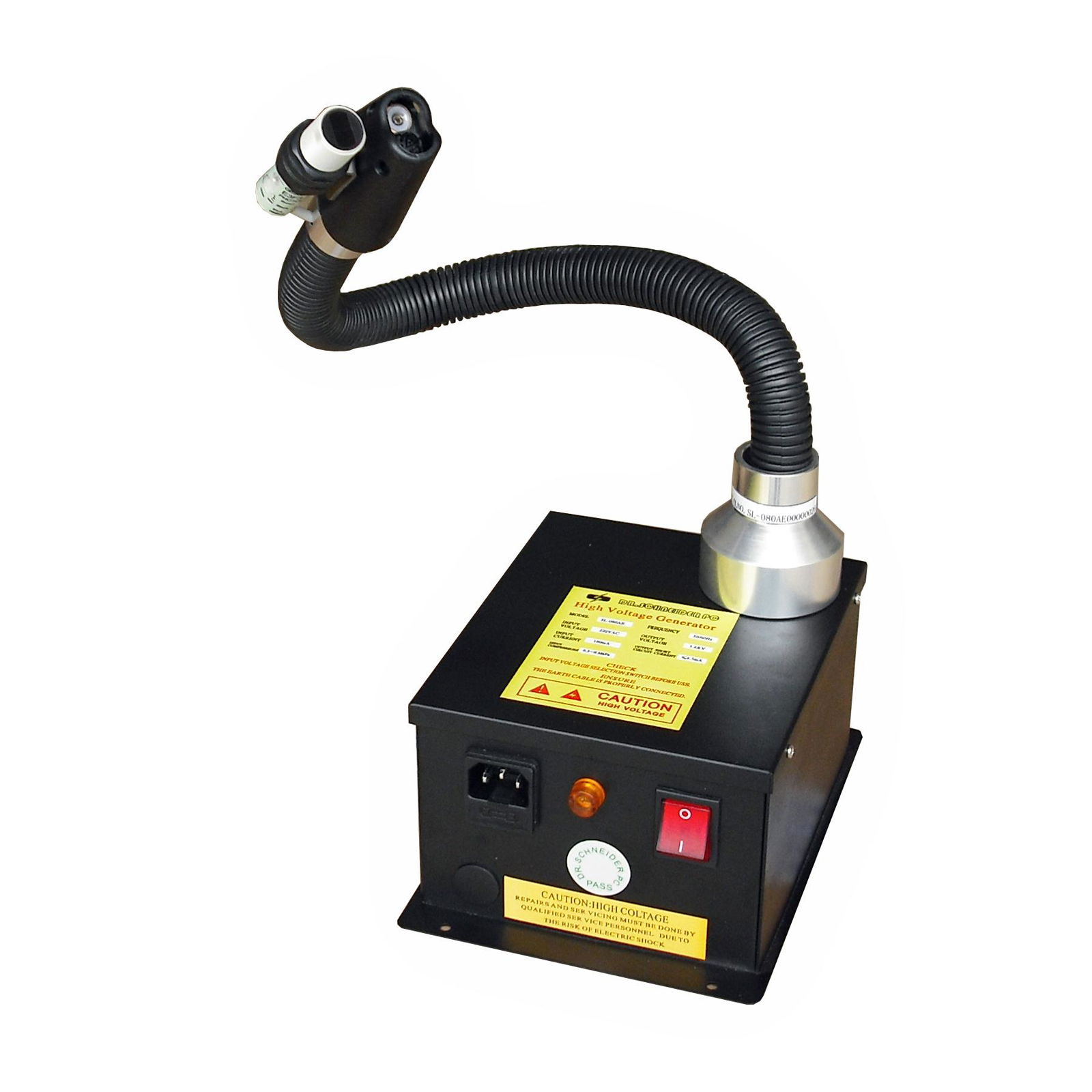

Ionizing Air Snake with sensor SL-080AE

Model:SL-080AE
Brand:Dr. Schneider PC
Origin:Made In China
Category:Security & Protection / Anti-Stati
Label:Ionizing Air Snake , static eliminator , anti static
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dongguan Xiwei Electronic Technology Co., Ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:29 Sep, 2022

Product Description

The SL-080AE Ionizing Air Snake with Sensor is designed to work with the power supply at 4.6kv A.C. Output.Care must be taken not to connect to a voltage other than the 4.6kv specified, otherwise permanent damage to the product may occur.

NB: Do not operate in flammable or explosive atmospheres.



Please ensure that the H.T.Cable securing gland is firmly tightened. This insures a good earth connection.

Failure to fit securely will prevent ionization and may result in the pistol becoming live, which can cause operator shocks whilst harmless this experience can be unpleasant.

SPECIFICATION

Input Voltage:

4.6KV

Current Consumption:

0.35A

Operating temperature:

0℃~50℃

Weight:

2.6kg

Length of Hose:

33cm

Air Velocity:

Max10 meters per second

Air Pressure:

5-70psi

Air Flow:

0.8 SCFM at 10 PSI

5.5 SCFM at 50 PSI

11.5 SCFM at 100 PSI

Decay time(5000V to 500V) at 150mm):

<1.6seconds

Offset Voltage

≤± 38V



Remarks:

1.Thst data available using a ME268A Charged Plate Analyzer.

2.Temperature in testing environment is≤25℃, and ambient humidity is≤75RH%.

3.Test figures are subject to the variation in the atmospheric conditions.


Payment Terms:TT

Product Image

Ionizing Air Snake with sensor SL-080AE 1
Img 1
Ionizing Air Snake with sensor SL-080AE 2
Img 2
