Movement-table Hot stamping machine

Model:H-TC232N
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Bronzing machine , Gilding machine , hot stamping machine
Price: US $5846 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:12 Sep, 2023

Product Description

Pneumatic move-table hot stamping Machine //Structure

Working table

High strength Steel plate , size: 500*650mm. automatically in-out

Stamping Head drive

Pneumatic drive

Foil collecting method

 Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Pneumatic hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Pneumatic drive, pressure large.
  • Working table can automatically in and out fr products replacing and taking off

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  •  Graduated disc of clock bronzing.
  • Die-cutting.

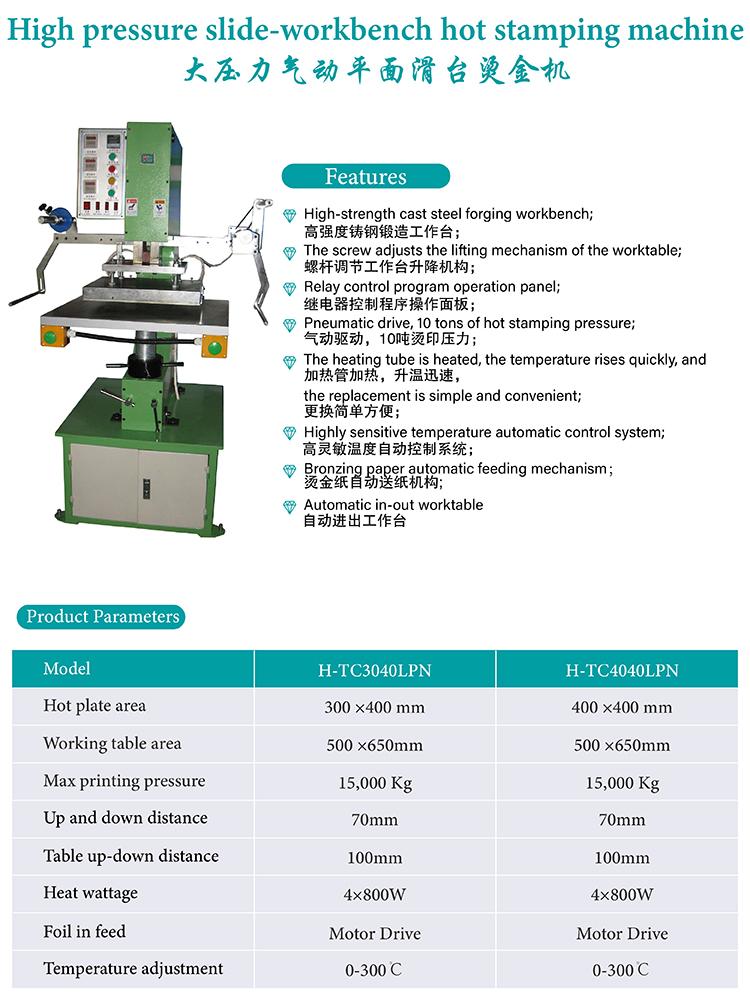

Pneumatic hot stamping Machine //Parameter

Technical parameters

H-TC231N

H-TC232N

  • Hot plate area:300 ×400 mm ,
  • Working table area:500 ×650mm
  • Max printing pressure:15,000 Kg
  • Up and down distance:70mm
  • Table up-down distance: 100mm
  • Heat wattage: 4×800W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC 。
  • Hot plate area:400 × 400 mm
  • Working table area:500 ×650mm
  • Max printing pressure:15,000 Kg
  • Up and down distance:70mm
  • Table up-down distance: 100mm;
  • Heat wattage: 4×800W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC 。

Works supply

  • 110V-220VPower supply;
  • 5-7Bar compress air

Package list

  • Package size: 1060*1030*1800mm
  • Gross weight: 650kg;
  • CBM: 1.96524



H.S.Code

8443198000

Certificate

CE

Pneumatic hot stamping machine //Advantage

Function

  • Bench made ​​of high strength cast steel forging, has a very high flatness and stability;
  • Working table can automatically in and out fr products replacing and taking off ;
  • Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
  • Relay control program is running, easy operation, easy maintenance;
  • Pairs of buttons control the stamping head up and down, security is greatly enhanced;
  • Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
  • Heating pipe heating, rapid heating, replacement is simple and convenient;
  • Heating plate can be removed to facilitate installation and replacement gilt template;
  • Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
  • Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
  • Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
  • Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of ​​freedom.

Product Image

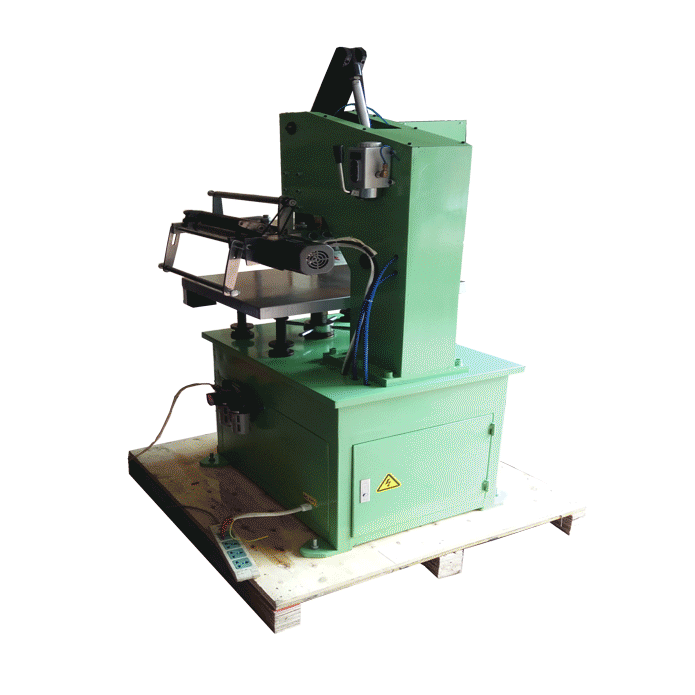

 Movement-table Hot stamping machine 1
Img 1
 Movement-table Hot stamping machine 2
Img 2
 Movement-table Hot stamping machine 3
Img 3
 Movement-table Hot stamping machine 4
Img 4
 Movement-table Hot stamping machine 5
Img 5
 Movement-table Hot stamping machine 6
Img 6
