Sell 12W Series Wall mount Switching power Adaptor

Model:GFP121U-1210B
Brand:MOUNT
Origin:Made In China
Category:Electronics & Electricity / Power Supply & Distribution / Power Adaptor
Label:adapter , charger , power supply
Price: US $3.2 / pc
Min. Order:500 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen GEAO Technology Co.,ltd

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:18 Oct, 2018

Product Description



We can offer all kinds of switching mode power supply,power adapter and battery chargers with good quality  and competitive prices.





Model Number

Input Range

Output Range

GFP121U-0320B























90-240V

3.0V

2A

GFP121U-A320B

3.3V

2A

GFP121U-0520B

5.0V

2A

GFP121U-0620B

6.0V

2A

GFP121U-0913B

9.0V

1.3A

GFP121U-1012B

10V

1.2A

GFP121U-1210B

12V

1A

GFP121U-1508B

15V

0.8A



DIMENTION:L*W*H=60.4*44*26.2
[Input Voltage]: AC 100-240V,50/60Hz
[Range Voltage]: AC 90--264V,47/63Hz
[Output Power]: 12W -15W
[Output Voltage]: 3V-24V
[Over Voltage Protection]: 120%min
[Over Current Protection]: 120%min
[Short Protection]: Auto Recovery
[Load Regulation]: ±5%
[Operating Temperature]: 0~40℃
[Storage Temperature]: -20~85℃
[Operating Relative Humidity]: 5~95%RH
[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
[Insulation Resistance]: DC 500V 100MΩ(Min)
[Safety]: UL/cUL  PSE   CB  FCC  CCC
[Market]:Japan,USA,Canada,China,Taiwan

If you need our product,

Pls send email to zenger@mountpower.net.cn,

We will offer the best price according the Qty,and we can ship goods to all over the world.

We can accept paypal payment.




Payment Terms:T/T,PAYPAL,Credit card

Product Image

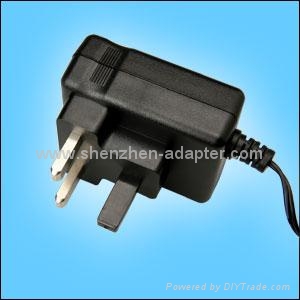

Sell 12W Series Wall mount Switching power Adaptor 1
