| Model: | SS100 |
|---|---|
| Brand: | Sendo |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Transducer |
| Label: | pressure transducers , pressure sensors , pressure transducers |
| Price: |
US $1
/ pc
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:27 Dec, 2014 |

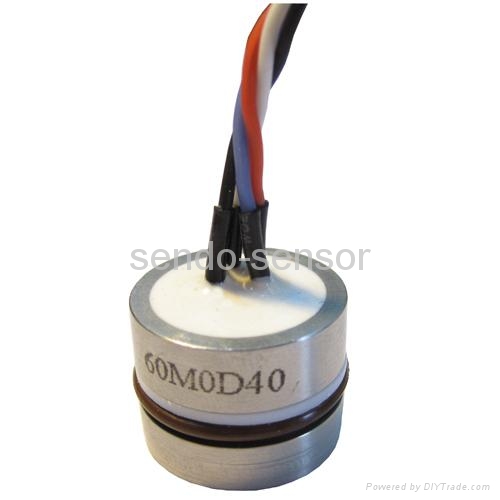

SS100 Series Piezoresistive Pressure Transducer Core
Application
1,Petroleum, Chemical, Metallurgy
2,Electric power, Aviation, Aerospace
3,Medical equipment, Automotive
4,Other industry process control and measuremet
Feature
1,Flat membrane interface or Externally threaded couping is optional.
2,Absolute pressure, Sealing pressure is optional.
3,High accuracy, High reliability.
Performance & Parameters
|
Power supply |
1.5 mADC(typical) |
|
Electric connection |
Kovar pin or 100mm silicon rubber flexible wires |
|
Input impedance |
3 KΩ~6 KΩ |
|
Overload |
3×F.S(<3.5MPa); 1.5×F.S(≥3.5MPa) |
|
Temperature compensation |
0~80°C |
|
Operating Temperature |
-40~125°C |
|
Measuring range |
0~35KPa…60MPa |
|
Accuracy |
±0.25%FS(typical) |
|
Zero output |
±2 mVDC |
|
Zero thermal error |
±0.02%FS/°C(typical) |
|
Span thermal error |
±0.02%FS/°C(typical) |
Construction
|
O-Ring Seal |
Fluorine rubber, Silicone rubber |
|
Diaphragm |
Diffused silicon |
|
Housing |
Stainless steel 316L |
|
O-ring: |
Viton |
|
Filling Liquid |
Silicone oil |
|
Diameter |
Ø19mm |
| Payment Terms: | T/T |
|---|---|
