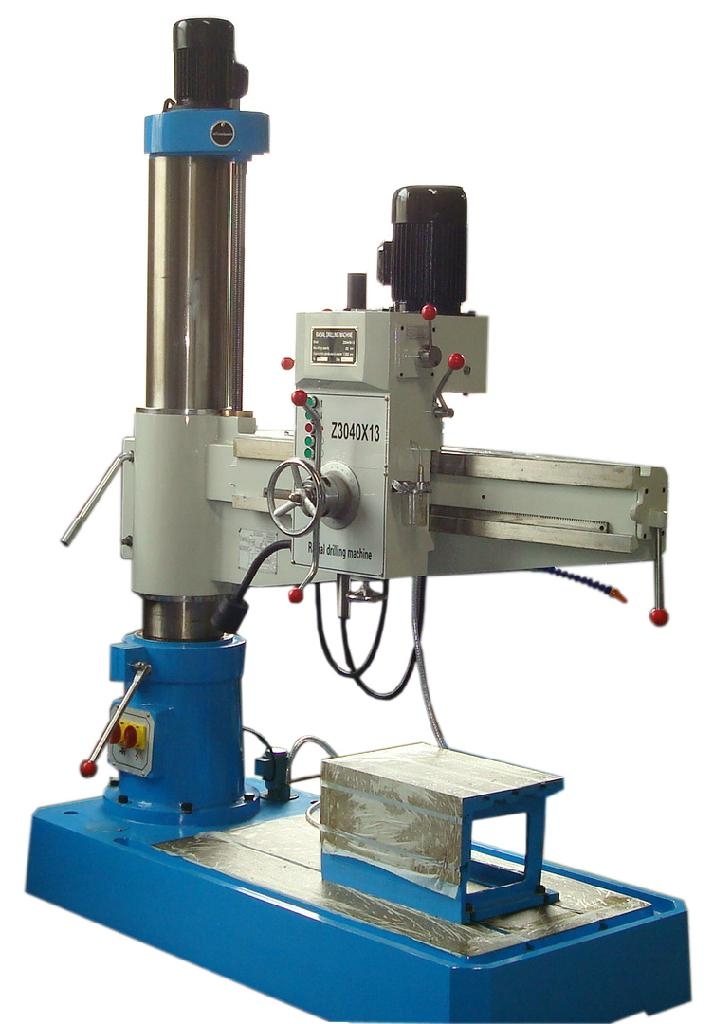

| Model: | ZQ3040/10/13 |
|---|---|
| Brand: | HeLi |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | radial drill , radial drilling mach , drilling machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:04 Dec, 2022 |
|
SPECIFICATION
|
UNIT
|
Z3040 x 10/13
|
|||
|
Max. drilling diameter
|
mm
|
cast iron40/cast steel 32
|
|||
|
Distance between spindle centerline and column generatrix
|
mm
|
360-1000
|
360-1300
|
||
|
Distance spindle nose and working surface of base plate
|
mm
|
260-1050
|
|||
|
Spindle travel
|
mm
|
200
|
|||
|
Range of spindle speeds
|
r.p.m
|
6steps 75-1200
|
|||
|
Spindle number of feeds
|
--
|
3steps 0.10、0.16、0.25
|
|||
|
Overall dimensions((L*W*H)
|
mm
|
1500*705*2200
|
1800*810*2200
|
||
|
Main motor power
|
kw
|
2.2
|
|||
|
N.W/G.W
|
kg
|
1280/1500
|
1330/1900
|
||
