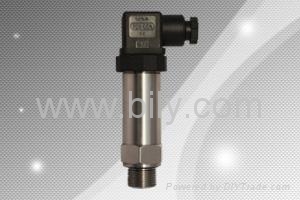

Switzerland imported ceramic piezoresistive sensor. Small size, light weight, easy to install, so there is proliferation-sensitive silicon chip strain bridge, power - power conversion integrated; shell made of stainless steel shell; standard signal output, anti- interference ability, suitable for long-distance transmission. The products are widely used in aerospace, communications, water conservancy, oil, chemicals, electricity, weather and laboratory areas such as gauge or absolute pressure measurement can also be measured negative pressure, vacuum and so on.
1, measurement range: the table below
2, working voltage: 18 ~ 36VDC
3 Accuracy class: ± 0.5%, ± 0.2%
4, medium temperature: -30 ~ +85 ℃
5, the output signal :4-20mA (wire) ,1-5V (3 wire)
6, delay: better than 0.01% of full scale
7, stability: better than 0.1% / year
8, LCD / LED display (optional), upper and lower alarm settings
9, measurement medium: liquid, gas or steam
10, connection: can be customized according to customer needs
Measure form                   Max measure range     Min measure eange
Relative pressure                     0-600bar                      0-0.5bar
Negative relative pressure     -100kPa-0                     -50kPa-0
Absolute pressure                      0-2bar                        0-0.5bar
