| Model: | MT-105 |
|---|---|
| Brand: | Melin |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | solar panel , solar charger , PV module |
| Price: |
US $1.3
/ W
|
| Min. Order: | 50000 W |
| Live Chat: |  | Last Online:25 Apr, 2017 |
|
Module Type |
Peak Power (Wp) |
Vm (V) |
Im(A) |
Voc(V) |
Isc(A) |
Dimension (mm) |
Weight (Kg) |
|
MT-105-75 |
75W |
17.40 |
4.31 |
21.73 |
4.72 |
1200x550x35 |
8.20 |
|
MT-105-80 |
80W |
17.64 |
4.54 |
21.88 |
4.98 |
1200x550x35 |
8.20 |
|
MT-105-85 |
85W |
18.05 |
4.71 |
21.94 |
5.29 |
1200x550x35 |
8.20 |
|
MT-105-90 |
90W |
18.11 |
4.97 |
22.32 |
5.25 |
1200x550x35 |
8.20 |
|
Solar Cell |

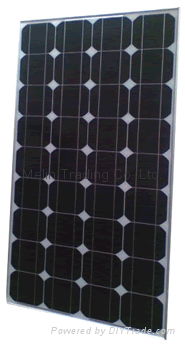

36PCS 5 inch (125*125) Mono Crystalline Solar Cell |
||||||
|
Junction Box |
IP65 TUV certified |
||||||
|
Cell Efficiency |
>17% |
||||||
|
Panel Efficiency |
>14% |
||||||
|
Certificate |
ISO IEC61215, IEC61730 , UL1730 |
||||||
|
Tolerance |
+/-3% |
||||||
|
Temperature Coefficient of Pm (%) |
-0.44%/℃ |
||||||
|
Temperature Coefficient of Isc (%) |
0.055%/℃ |
||||||
|
Temperature Coefficient of Voc (%) |
-0.35%/℃ |
||||||
|
Maximum System Voltage (V) |
1000 |
||||||
|
Temperature Range |
-40℃～+85℃ |
||||||
|
Warranty |
5 years warranty for replacement 10 years warranty for 90% output 25 year warranty for 80% output |
||||||
