Product Description

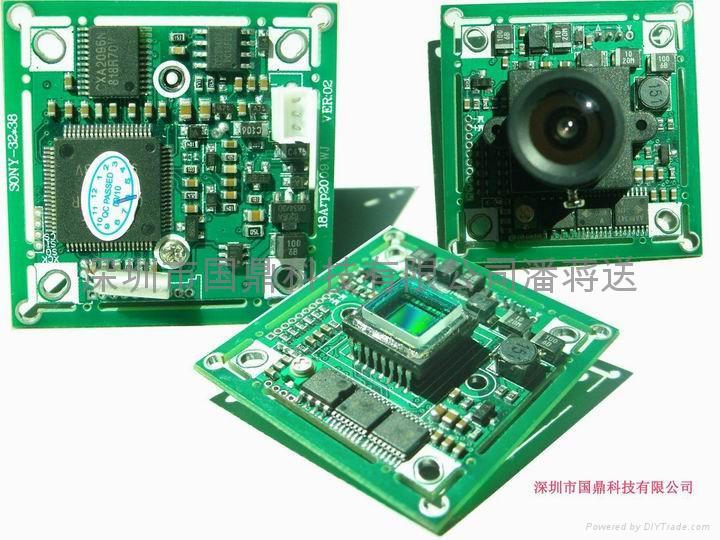

Item: 1/3 SONY CCD B&W board camera
NO.: GD-B863C
Image Sensor: 1/3 SONY CCD B&W
Horizontal Resolution: 420 TV Lines
Sensing Area: 4.9mm*3.7mm
Signai System: PAL/ NTSC
Effective Pixels: 500(H)*582(V)/ 510(H)*492(V)
Scanning frequency: H:15.625KHz V:50Hz / H:15.7343KHz V:60Hz
Electronic Shutter: 1/50-1/100000(Sec) / 1/60-1/100000(Sec)
S/N Ratio ≥48dB(AGC OFF)
Gray Rating: 10th rank
Gamma value: 0.45
Low electricity level: 0.06 Vp-p
Minumum Illumination: 0.05 Lux / F2.0
Video Output: 1.0Vp-p 75Ω
Standard layout lens: 3.6 mm
Specifications: PCB:38mm*38mm
Power Consumption: DC12V±10% 110mA±10%
Operation Temperature: -20℃~50℃ RH95% Max
