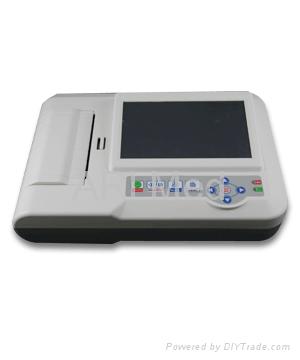

ARI-600G Digital 3/6 Channel ECG
Features:
--7" TFT, touch screen, led backlight
--Digital isolation technology and signal processing solution, digital filter
-- Patient management, name and age and id.
-- Detail analysis report.
-- Multi-language options: Germany, France, Italian, Turkey, etc
-- Built-in lithium rechargeable battery, wide thermal printing system
-- USB and LAN socket.
-- Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
-- Auto-measurement, auto-analysis, and auto-interpretation.
Specifications:
-- Lead: Standard 12 leads
-- Patient leak current: <10uA
-- Input impedance: >=50M
-- Frequency response:0.05 ~ 150HZ(-3dB)
-- Time constant:>3.2S
-- CMRR:>100dB
-- Dimension of recording paper: 80mmx20m
--Paper speed: 25mm/s, 50mm/s
-- Sensitivity choice:5, 10,20mm/mV.
-- Measurement parameters: HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
-- Product safety type: Class I, CF. Defibrillation and pacing protection
-- Enduring polarization voltage: ± 300mv
-- Nosie level:<15uVp-p
-- Dimension:130mm(L)× 74mm（W)× 25mm(H)
-- Net weight: 2.3KG
