The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2008

Features:

Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
Support for on-board diagnostics on all GM systems 1992 thru current year.
Removable hardware modules provide insurance against scan tool obsolescence.
Large, easy-to-read backlit screen.
RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
Ability to view the status of vehicle diagnostic tests as they run.
Bi-directional
The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

Vetronix Tech-2 Specifications

Dimensions: 12″×6″×2″
Microprocessor: 32 bit, 16 MHz
Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
Communications: Integral RS232 communication port.
Screen: 3.8″×2.8″ backlit monochrome with full graphics
capability: 320×240 pixels. Displays up to 9 vehicle parameters at once

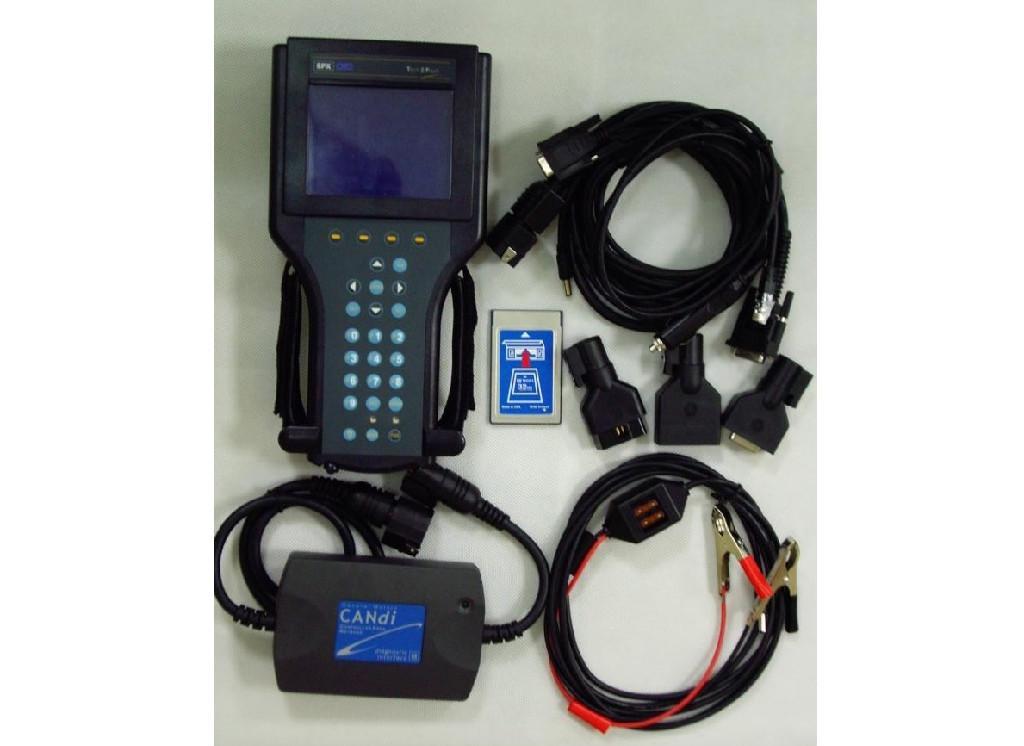

Tech 2 Kit Includes:

1.    Tech 2 Flash Tester
2.    32 MB PCMCIA Card with GM OE Applications
3.    Data/Sensor/Trouble Code Manual
4.    DLC Cable, DLC Loopback Adapter
5.    12V Cigarette Lighter Power Cable
6.    SAE 16/19 Adapter
7.    NAO 12/19 Adapter
8.    Candi Module
9.    Battery Power Cable
10.  Storage Case
11.  PDF User Guide CD

Optional:
1.  32 MB PCMCIA Card with OPEL software
2.  32 MB PCMCIA Card with SAAB software

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flash's diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.
