| Model: | 311W |
|---|---|
| Brand: | BeiLaMoo |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | 1xaa battery case , aa battery holder , aa battery box |
| Price: |
-
|
| Min. Order: | 1000 pc |
| Live Chat: |  | Last Online:10 Apr, 2024 |

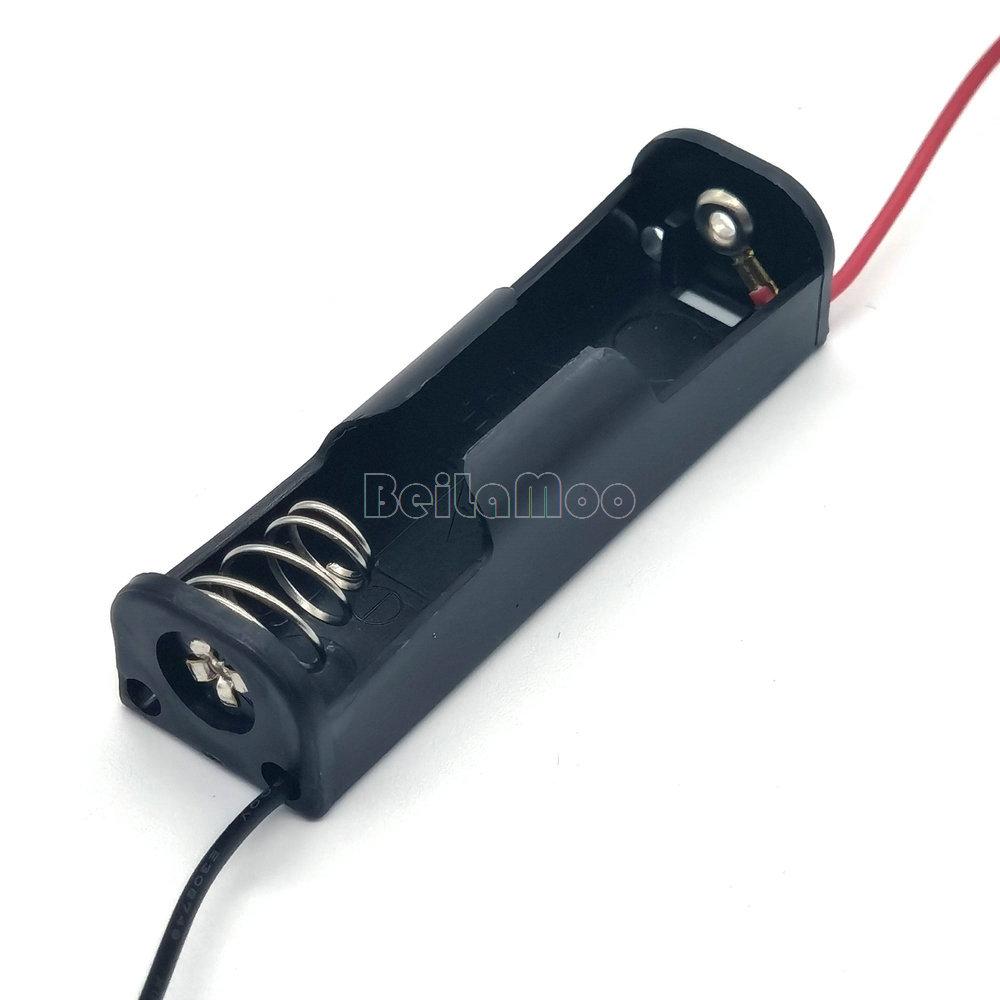

311W-"One AA Battery Holder"
Specifications:
Size:57x17x14mm
Plastic material - polypropylene
Flammability Rating-UL94 HB, UL File No. E216959
Temperature Range: -10°C to +100°C
Springs - nickel plated spring steel
Wire - 152.4 mm Long 26 AWG, UL1007, CSA - TR-64, 300V, 80° C.
Rivets - Brass, nickel plated
9 Volts Snaps - Brass, nickel plated
Contact Resistance: Under 50m for +/- contacts per EIA-540J000
ROHS COMPLIANT
The explanation of numbers of battery holders:
W: With lead wires 150mm
Strip & Tin: 5mm+/- 1mm
B: With 4Prong or 6Prong snap terminal
L: With TAG(Solder Lugs) Terminal
P: With Pin(PC Mounted)
T: Terminal
S: Slide Switch ON-OFF
