| Model: | ZP17/19 |
|---|---|
| Brand: | Sunhang |
| Origin: | Made In China |
| Category: | Industrial Supplies / Pharmaceutic Machine |
| Label: | Tablet Machine , Tablet equipment , Middle Tablet Press |
| Price: |
US $5500
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:15 Mar, 2024 |

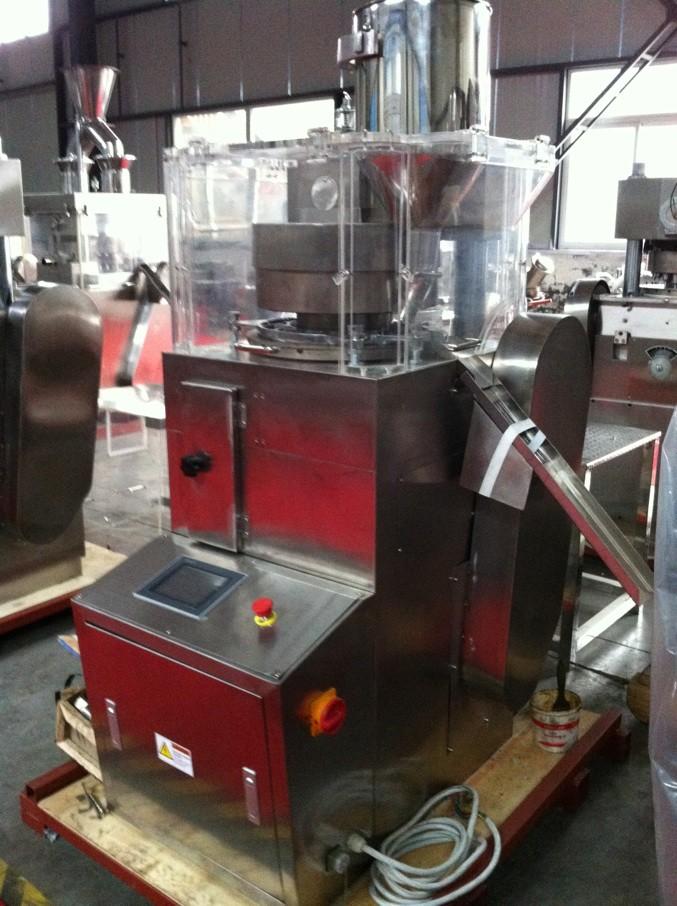

ZP17，ZP19，ZP33 Rotary Tablet Press
This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused. This machine has won the fine Quality Product Prize awarded by China National Medical Management Bureau.
Main Technical Specifications:
|
Item |
Model |
||
|
Dies |
33sets |
19sets |
17sets |
|
Max. pressure |
40KN |
40KN |
40KN |
|
Max. diameter of tablet |
12mm |
12mm |
16mm |
|
Max. depth of filling |
15mm |
15mm |
15mm |
|
Max. thickness of tablet |
6mm |
6mm |
6mm |
|
Turret speed |
11-28rpm |
20-40rpm |
|
|
Production capacity |
43000-11000 pcs/h |
22800-45600 pcs/h |
20400-40800 pcs/h |
|
Motor |
2.2kw 960rpm 380V 50Hz |
||
|
Overall size |
930×900×1600 |
880×750×1600mm |
|
|
Weight |
850kg |
560kg |
|
