Flat Precision screen printer with vacuum table(PS-3050PE)

Model:PS-3050PE
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:screen printer , silk printer , screen printing
Price: US $4126 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:20 Jun, 2024

Product Description

   The semi-automatic flat screen printing machine usually has three actions, the upper and lower of the screen, the left and right of the scraper and the ink return knife, and the up and down of the scraper and the ink return knife. The actions of the scraper and the ink return knife are just opposite, and it is simpler and more reliable to use pneumatic control. The up and down motion of the screen and the left and right motion of the scraper ink return knife can be controlled either pneumatically or by motor. We call the screen printing machine that uses pneumatic control for these two actions as a pneumatic screen printing machine, and the way that these two actions are controlled by a motor is called an electric screen printing machine. The precision of the electric screen printing machine is higher than that of the pneumatic screen printing machine.
     In addition to the difference in control power, in order to further improve the accuracy of the screen printing machine, linear guides are also used for the guide shafts on the upper and lower sides of the screen and the left and right of the scraper, which further reduces the running error. The other is the use of a touch screen operation panel, which is the dataization of the operation and adjustment of each action, which is convenient to reasonably adjust the parameters used in the silk screen printing of different products.



PS-3050E Flat precision screen printing machine with vacuum table //Structure

Working table

Vacuum working table, Size: 400*500mm

Actions

Up-down of screen plate

To be printed

  • Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision linear guideway

PS-3050E  Flat screen printing machine with vacuum table //Usage and characters

Guide

  • Fit printing soft and thin products such as paper, plastics film etc;
  • With vacuum working table ensure adsorbing object when printing;
  • Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
  • Also widely used in Glass plate, Machine panel screen printing;
    With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
  • Suitable for printing sheet-fed adhesiving sticker;
  • Suitable for printing water transfer label and heat transfer label through diffrent process;
  • Max Printing area: 300*500mm;
  • High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

  • Widely used in Glass printing field;
  • With UV curing machine, Can finish many UV special printing process for UV package industry.
  • Suitable for printing Mobile windows ;
  • Suitable for printing water transfer label and heat transfer label through diffrent process;
  • The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

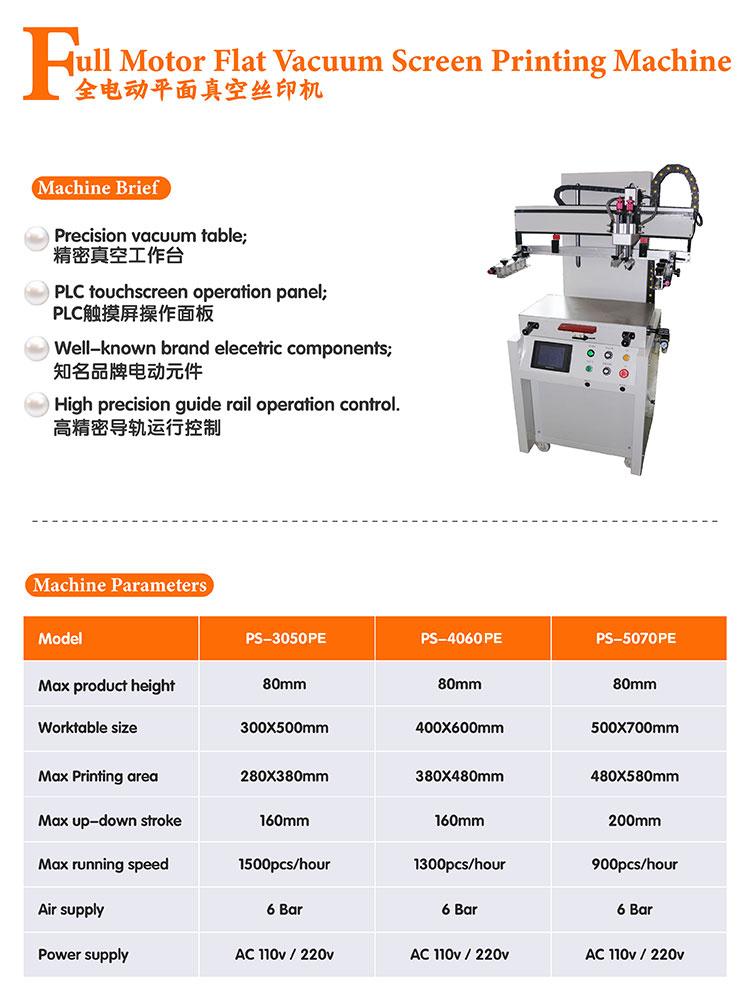

PS-3050PE Flat screen printing Machine with vacuum table//Parameters

Technical parameters

  • Max printing thickness: 150 mm;
  • Air consumption: 60Litre/Min;
  • Dimension of working table: 400×600mm;
  • Max printing areas: 300×500mm;
  • Max printing speed: 1000Pcs/H;
  • Max frame dimension: 500×620mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:160mm;
  • Stroke of Squeegee: 500mm;
  • Table Precision: 0.05mm;
  • Rang adjustment of table: 10mm.

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Package parameters

  • Wooden Case:Package dimension: 950X880X1650MM
  • Gross weight: 183Kg;
  • CBM: 1.3794

H.S.CODE

8443192190

Certificate

CE

PS-3050PE Flat screen printing Machine with vacuum table //Advantage

Function

  • High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application: The semi-automatic flat screen printing machine usually has three actions, the upper and lower of the screen, the left and right of the scraper and the ink return knife, and the up and down of the scraper and the ink return knife. The actions of the scraper and the ink return knife are just opposite, and it is simpler and more reliable to use pneumatic control. The up and down motion of the screen and the left and right motion of the scraper ink return knife can be controlled either pneumatically or by motor. We call the screen printing machine that uses pneumatic control for these two actions as a pneumatic screen printing machine, and the way that these two actions are controlled by a motor is called an electric screen printing machine. The precision of the electric screen printing machine is higher than that of the pneumatic screen printing machine.
In addition to the difference in control power, in order to further improve the accuracy of the screen printing machine, linear guides are also used for the guide shafts on the upper and lower sides of the screen and the left and right of the scraper, which further reduces the running error. The other is the use of a touch screen operation panel, which is the dataization of the operation and adjustment of each action, which is convenient to reasonably adjust the parameters used in the silk screen printing of different products.

Product Image

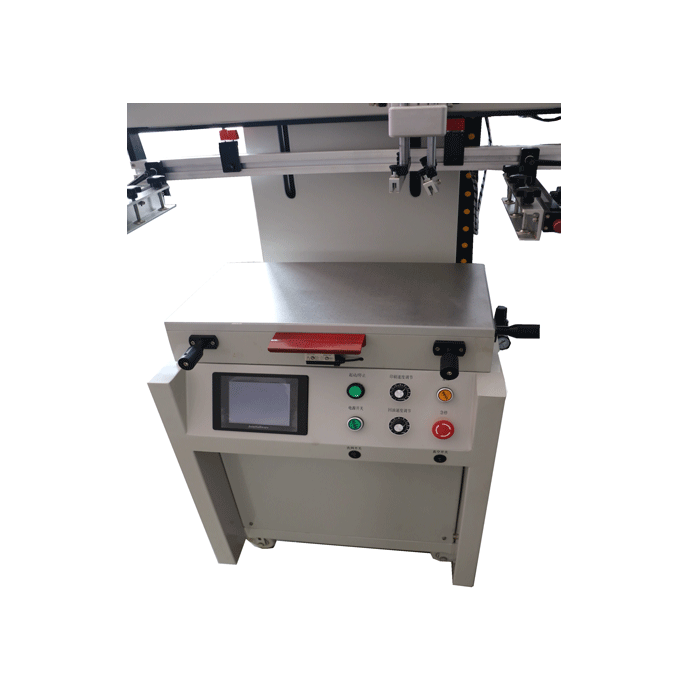

 Flat Precision screen printer with vacuum table(PS-3050PE) 1
Img 1
 Flat Precision screen printer with vacuum table(PS-3050PE) 2
Img 2
 Flat Precision screen printer with vacuum table(PS-3050PE) 3
Img 3
 Flat Precision screen printer with vacuum table(PS-3050PE) 4
Img 4
 Flat Precision screen printer with vacuum table(PS-3050PE) 5
Img 5
