RJ-45 Lightning Protector 1
  • RJ-45 Lightning Protector 1

RJ-45 Lightning Protector

Model:VX-LPRJ45E
Brand:DSLPartners/VersaXpress/Versatek
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment
Label:Lightning Protector , RJ-45 Protector , Lightning
Price: -
Min. Order:-
Inquire Now

Member Information

Detail

DSL Partners, Inc.

Free MemberShang Hai - China
Last Online:27 Apr, 2010

Product Description

The VX-LPRJ45E/DP-LPRJ45E is designed to protect signal transmission on a Ethernet line if struck or exposed to lightening while safeguarding equipment from damage by surge induced over voltage.



Technical Parameters:
Type
VX-LPRJ45E/DP-LPRJ45E
Interface type
RJ45
(Un) Rated operational voltage
110V
(Uc) maximum operational voltage
170V
Nominal discharge current, In (8/20uS)
10KA
Maximum discharge current, Imax (8/20uS)
20KA
(Up) Measured limiting voltage
250V
Center Pass-through Frequency, MHz
20
Input Return Loss, db
≤ 0.2db
Protection Class
IP20
Size, mm
70x25x25 mm


  Installation and Maintenance:

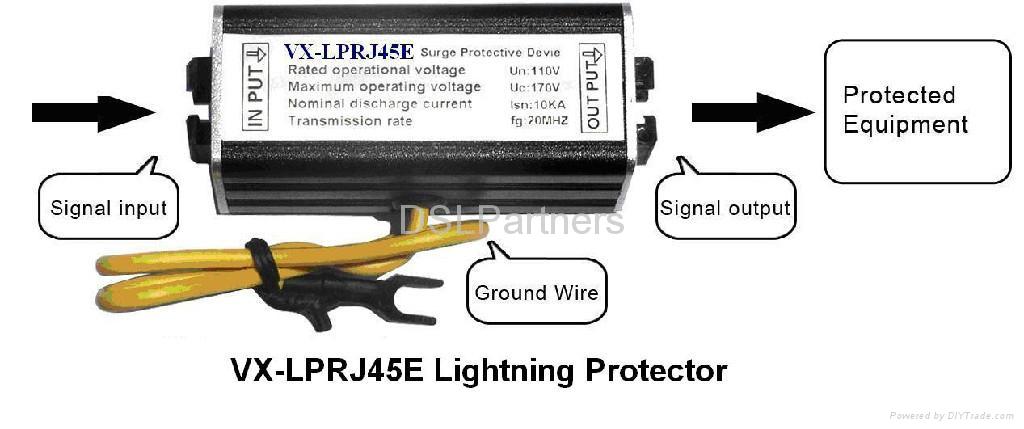

a.    Installation diagram:
b.         The VX-LPRJ45E/DP-LPRJ45E is connected in series at the front-end of the protected equipment. The input of the lighting protector is connected with the Ethernet  line and the output should be connected with the input of the protected equipment.
c.         The yellow wire is designated to be grounded.
d.         The VX-LPRJ45E/DP-LPRJ45Edoes not require special maintenance to operate. Please inspect and remove the unit if it has failed. A replacement will be needed if the protected device is operating after removal and bypassing of the VX-LPRJ45E/DP-LPRJ45E.
e.         It is recommended to verify the working condition of the units before and after any bad weather. If the until fails, please contact us immediately.

Product Image

RJ-45 Lightning Protector 1
Img 1
