| Model: | XK3201T1 |
|---|---|
| Brand: | KeFeng |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Weighing Indicator , weighing controller , digital meter |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:01 Sep, 2015 |
Introduction:

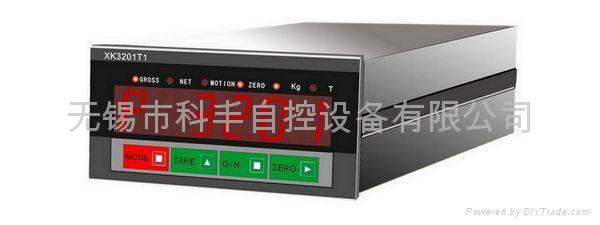

XK3201T1 is a multipurpose weighing indicator, which is suitable for platform scale, weighbridge, volume scale, truck scale, and crane scale.
1，Strong anti-interference ability
2，small volume
3,fast reaction speed
4,four pcs limit output port
5,high stability
Technical Parameters:
Power input | AC220V（+10%、-15%）50/60HZ |
sensor voltage | DC10V±0.05% |
sensor current | 120mA（max parallel connect with 4pcs 350ohm sensors） |
Accuracy | Zero drift<0.1uV(compare with input) Gain drift : 10ppm/℃ |
Zero range | 0～2mV |
Conversion Speed | 120times/s |
resolution ratio | 24bits△-∑ADC |
Min resolution | 1/10000、1/40000(highest) |
volume | 96W×48H×140D(mm) |
Cut-out size | 92W×46H(mm) |
Weight | About |
